1N4742A Zener Diode: Technical Specifications, Applications, and Strategic Sourcing for OEMs

Why are you still paying tier-1 distributor markups for a 12V workhorse when your production volume demands manufacturer-direct pricing? Procurement officers understand that even a standard 1N4742A zener diode can disrupt a complex MRP schedule if lead times slip or authenticity is questioned in the open market. You need components that arrive at your facility on time and in real-time, without the volatility of a fragmented marketplace. It's a logistical challenge that requires a disciplined, technical solution.

We're here to bridge that gap. In this briefing, you'll master the technical specifications of this 1W regulator and discover how to secure OEM pricing that rivals the advantages of major global distributors. We'll analyze critical electrical characteristics, identify high-reliability industrial applications, and outline a strategic sourcing program designed for seamless supply chain integration. By the end of this article, you'll have the data needed to verify performance and reduce your BOM costs through vetted, ISO-certified manufacturing partners. Let's look at the parameters that make this component an industrial staple and how to source it with composed confidence.

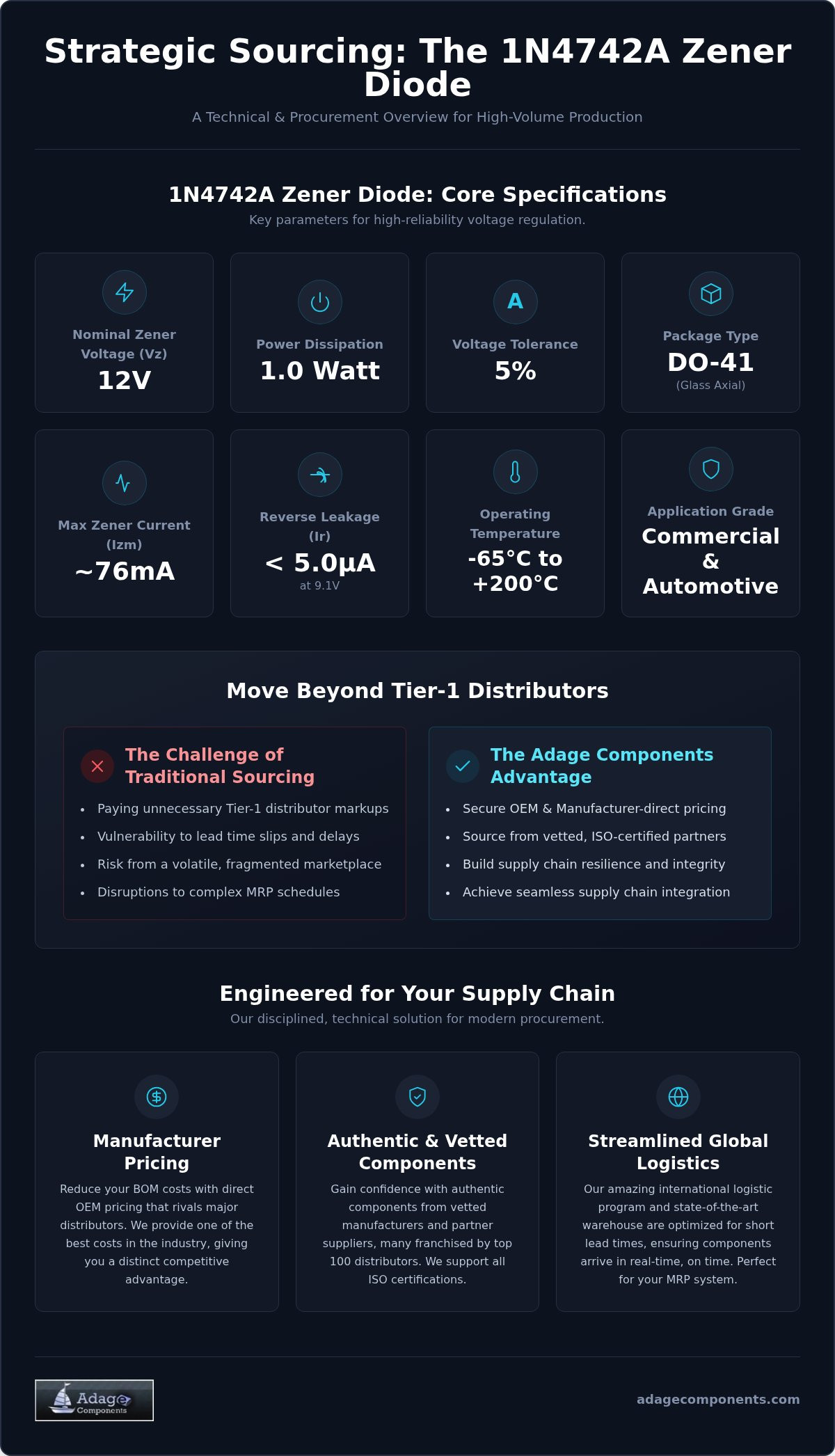

Understanding the 1N4742A Zener Diode: Core Specifications

The 1N4742A zener diode is a silicon planar component engineered for high-reliability voltage regulation in demanding industrial environments. As a 1.0 Watt power device, it provides a stable 12V nominal Zener voltage (Vz) within the industry-standard DO-41 glass package. The "A" suffix signifies a 5% tolerance, ensuring the precision required for modern logic circuits and power management modules. Engineers frequently select the Zener diode for its ability to maintain a constant voltage once the breakdown threshold is reached; it's a fundamental building block for protecting sensitive downstream components from voltage spikes.

To better understand the physical dimensions and basic testing procedures for this component, watch this technical overview:

Electrical Characteristics and Limits

Operational safety depends on calculating the maximum Zener current (Izm). For a 1W device operating at 12V, the theoretical thermal limit is approximately 76mA. However, rigorous design dictates significant derating for high-temperature environments to prevent junction failure. You must also account for Zener impedance (Zzt), which is typically measured at a test current of 21mA for this specific part. Lower impedance indicates a sharper "knee" in the breakdown curve. This results in superior regulation. Reverse leakage current (Ir) remains minimal, typically staying under 5.0µA at a reverse voltage of 9.1V, which prevents parasitic power loss before the diode reaches its breakdown threshold.

Mechanical and Thermal Data

The DO-41 axial-lead package is designed for through-hole mounting, providing robust mechanical stability in industrial controllers. Thermal management is a critical priority. The junction-to-ambient thermal resistance determines how efficiently the device dissipates heat during continuous operation. These components operate across an expansive temperature range, typically from -65°C to +200°C. This makes them suitable for both commercial and automotive grade applications where thermal cycling is a constant factor. You can view our full range of Zener diodes and other passives to find the exact match for your hardware requirements.

We provide these authentic components through an amazing international logistic program. By sourcing from vetted manufacturers and partner suppliers franchised by top 100 distributors, we ensure your facility receives parts that are perfect for your MRP system. You get the same advantages as buying from tier 1 distributors but at OEM pricing. This allows you to secure one of the best costs in the industry while ensuring your components arrive in real time, on time. Our growing state-of-the-art warehouse is optimized for short leading times, helping you maintain a lean and efficient supply chain.

Operational Dynamics: How the 1N4742A Functions in Voltage Regulation

The 1N4742A zener diode functions as a critical clamp in power regulation circuits. At its 12V threshold, the physics of the component transition from the Zener effect to Avalanche breakdown. While the Zener effect dominates at lower voltages, the Avalanche effect is the primary mechanism for the 1N4742A. This distinction is vital for engineers because it influences how the device maintains a stable reference voltage despite input fluctuations. Precision regulation relies heavily on the "knee" region of the characteristic curve. Operating the diode within this region ensures that small changes in current don't result in significant voltage swings. For a deeper technical dive into these physics, refer to this Zener Diodes Introduction from Texas Instruments.

Temperature coefficient effects are an essential secondary consideration. Because the 1N4742A relies on Avalanche breakdown, it possesses a positive temperature coefficient. As the junction temperature rises, the Zener voltage increases slightly. This behavior requires careful thermal compensation in high-precision industrial controllers to ensure long-term lifecycle management. We mitigate these risks by sourcing from vetted manufacturers who provide rigorous data on thermal performance across varying loads.

Circuit Integration and Biasing

Effective biasing starts with the selection of a series resistor. This resistor must limit the current to a level that ensures regulation while staying below the 1.0 Watt power dissipation limit. The stability of the Zener voltage is inversely proportional to the variance in load current when the diode is biased near its maximum power rating. Over-biasing leads to excessive heat, while under-biasing risks falling out of the "knee" region and losing regulation. Managing heat dissipation in continuous-duty regulation is a baseline requirement for maintaining component integrity. If your current design faces thermal bottlenecks, you can explore our line card of passive components to find optimized thermal solutions at manufacturer pricing.

Transient Protection Capabilities

The 1N4742A excels as a voltage clipper for signal lines. It prevents sensitive IC inputs from exceeding 12V during minor transients. However, 1W diodes have clear limitations in high-energy surge suppression. Unlike specialized TVS diodes designed for massive ESD events, the 1N4742A is better suited for steady-state regulation or low-energy clamping. For automotive grade components, this distinction prevents catastrophic board failure. We provide access to partner suppliers franchised by top 100 distributors to ensure your MRP system stays on track with authentic components. Our amazing international logistic program delivers these parts to your facility in real time, on time, providing you with the same advantages as buying from tier 1 distributors but at OEM pricing.

Industrial Applications: Where the 1N4742A Excels

The 1N4742A zener diode is a staple in industrial power management, particularly for 12V logic circuits. In these environments, maintaining a rigid voltage rail is essential for the reliable operation of PLCs and industrial sensors. Beyond simple regulation, this component is frequently used for voltage shifting and level translation. It acts as a precise gatekeeper, allowing signals to pass between disparate voltage domains in complex industrial controllers without risking damage to sensitive logic gates. This versatility makes it a primary choice for engineers who need to stabilize fragmented signal paths.

Over-voltage protection in commercial battery charging systems represents another critical deployment. By clamping the voltage at 12V, the diode prevents thermal runaway and capacitor failure during charging cycles. For analog-to-digital converters (ADCs), the 1N4742A provides a cost-effective reference voltage. While it doesn't match the extreme precision of dedicated reference ICs, its 5% tolerance and 1W power handling make it ideal for non-critical monitoring tasks where BOM cost optimization is a priority. We help you achieve these savings by providing direct access to manufacturer pricing.

Automotive and Commercial Grade Use

The 12V standard in vehicle electronics makes the 1N4742A zener diode indispensable for sensor shielding and transient suppression. These environments demand compliance with rigorous reliability standards. Our automotive grade components are sourced from vetted manufacturers to ensure they withstand high-vibration and extreme thermal cycling. We deliver these authentic components to your facility in real time, on time, ensuring your MRP system remains synchronized with your production schedule. By utilizing our international logistic program, you get OEM pricing that significantly reduces your overhead compared to traditional retail channels.

Consumer Electronics and DIY

In the consumer sector, this diode remains a legacy favorite for audio equipment and power adapters. Its axial-lead DO-41 package is perfect for rapid prototyping on breadboards, allowing engineers to verify designs before moving to SMD production. For high-volume consumer goods, the cost-effectiveness of this component is a major advantage. We offer some of the best costs in the industry, providing you with the same advantages as buying from tier 1 distributors but at OEM pricing. Whether you're maintaining legacy systems or scaling new products, our growing state-of-the-art warehouse ensures short leading times for all your passive component needs. To see our current availability, you can review our line card or submit your requirements through our BOM submission form for an immediate quote.

Design Considerations and Drop-in Replacements

Maintaining supply chain resilience requires a proactive approach to component substitution. When you identify a drop-in replacement for the 1N4742A zener diode, you must match the 12V nominal voltage and 1.0W power dissipation exactly. However, physical footprints often change. If your production is shifting toward miniaturization, the ZMM4742 serves as the surface-mount (SMD) equivalent in a MELF package. We ensure these transitions are seamless by vetting every partner supplier through rigorous ISO-certified manufacturing audits. This process guarantees that private label parts meet the same performance benchmarks as legacy brands, preventing costly redesigns or field failures.

Technical reliability is the foundation of our sourcing strategy. We don't just provide parts; we provide verified solutions for both commercial and automotive grade components. This meticulous attention to detail ensures that every diode in your shipment is an authentic component that meets your exact schematic requirements. By choosing a partner that prioritizes quality assurance, you mitigate the risks of component authenticity that often plague the open market during periods of high demand.

Qualifying Alternative Suppliers

Reliable sourcing isn't just about finding a part; it's about verifying the infrastructure behind it. You should prioritize suppliers who provide comprehensive technical support and documented compliance with international quality standards. We act as your strategic partner by bridging the gap between fragmented markets and your specific engineering needs. By using the Adage Components linecard, procurement officers can quickly cross-reference axial-lead components with modern SMD alternatives. This ensures your facility remains operational even when traditional tier-1 distributors face extended lead times.

BOM Optimization and Cost Reduction

Procurement complexity often stems from an over-diversified Bill of Materials. You can reduce this friction by consolidating similar diode types into a single, high-volume SKU. This strategy allows you to leverage OEM pricing and reduce the administrative burden on your MRP system. We look beyond the unit price to analyze the total cost of ownership, including logistics and inspection fees. Our amazing international logistic program ensures that your consolidated orders arrive at your facility in real time, on time.

To identify immediate savings and streamline your procurement, you can submit your BOM for cost analysis today. We provide one of the best costs in the industry by offering manufacturer pricing that bypasses retail markups. This disciplined approach to sourcing allows you to maintain high-reliability standards while significantly improving your bottom line. If you are ready to qualify a new source for your production run, explore our comprehensive linecard of authentic components.

Strategic Sourcing for Volume Production: Beyond Tier-1 Distributors

While retail distributors provide immediate availability for small batches, scaling production of the 1N4742A zener diode requires a shift to manufacturer pricing. Standard retail markups erode margins in high-volume OEM contracts. We provide a disciplined alternative. By leveraging our global stocking programs, you mitigate the lead time volatility that often impacts MRP schedules. Our approach ensures you receive the same advantages as buying from tier 1 distributors but at OEM pricing. This model is built for the high-stakes world of industrial procurement where cost-effectiveness is as critical as technical precision.

Integration is the key to supply chain efficiency. We've designed our delivery systems to be perfect for your MRP system, facilitating JIT production without the risk of stockouts. Our vetted manufacturers and partner suppliers, many franchised by top 100 distributors, provide the technical reliability you demand. This ensures every 1N4742A zener diode entering your production line is an authentic component. We thrive on solving difficult sourcing puzzles, acting as a steady partner in a volatile global market.

International Logistics and Quality Assurance

Our amazing international logistic program simplifies cross-border transit, moving parts from our growing state-of-the-art warehouse to your facility in real time, on time. Speed doesn't compromise safety here. Every batch undergoes rigorous multi-stage inspection processes to verify authenticity. We maintain compliance with all ISO certifications, supporting both commercial and automotive grade components. This meticulous attention to detail allows us to offer one of the best costs in the industry without sacrificing the precision required for high-reliability industrial environments. Short leading times are a standard expectation, not a luxury.

Partnering for Supply Chain Integrity

Strategic sourcing is about more than unit cost; it's about lifecycle management and risk mitigation. Traditional tier-1 distributors prioritize broad availability over specialized pricing. We flip that model. Our distributor affiliated program provides a strategic bridge to the fragmented global marketplace. This allows you to secure manufacturer pricing while benefiting from a massive infrastructure designed for international scale. It's a professional briefing style approach: we prioritize availability, quality standards, and speed to reduce the cognitive load on your procurement team.

If you're ready to optimize your BOM and secure your supply chain against future volatility, contact Adage Components today. Our team is perpetually ready for immediate operational engagement, ensuring your facility receives high-quality passives exactly when they're needed. Don't let component lead times dictate your production schedule. Partner with a specialist that combines the scale of a major distributor with the pricing benefits of a direct manufacturer.

Optimizing Your Industrial Supply Chain for Long-Term Resilience

Securing the 1N4742A zener diode for volume production requires more than just identifying technical specifications. You need a partner that combines the precision of an ISO 9001:2015 compliant manufacturer with the logistical infrastructure of a global distributor. We provide a disciplined solution. By prioritizing manufacturer pricing and direct-to-facility logistics, you can effectively bypass the volatility of traditional retail markups. This approach ensures your 12V logic circuits and automotive grade modules remain protected by authentic components that meet rigorous performance standards.

Our amazing international logistic program ensures your parts arrive in real time, on time. These short leading times for industrial passives are designed to be perfect for your MRP system, reducing the friction of procurement. You don't have to settle for fragmented supply chains or uncertain lead times when you can leverage OEM pricing today. We thrive on solving difficult sourcing puzzles for our partners and maintaining high-standard quality assurance.

Take the next step in securing your production schedule. Request a Quote for OEM Pricing on 1N4742A Zener Diodes and experience the efficiency of a specialist dedicated to your operational success. We look forward to supporting your next build with composed confidence and reliability.

Frequently Asked Questions

What is the Zener voltage of the 1N4742A?

The nominal Zener voltage of the 1N4742A is exactly 12V. This parameter is typically measured at a test current (Izt) of 21mA. The "A" suffix denotes a 5% tolerance, which means the actual breakdown voltage will consistently fall between 11.4V and 12.6V. It's a reliable choice for 12V logic rail regulation in industrial controllers and power supply modules where precision is a baseline requirement.

Can I use a 1N4742A in place of a 1N4742?

You can use a 1N4742A in place of a standard 1N4742 without any circuit modifications. The "A" version is a superior choice because it offers a tighter 5% tolerance compared to the 10% tolerance found in the base model. This ensures you don't lose precision in your voltage regulation tasks. We supply these authentic components through vetted manufacturers to guarantee they meet your engineering benchmarks every time.

What is the maximum current a 1N4742A can handle?

The maximum continuous Zener current (Izm) for a 1N4742A zener diode is approximately 76mA when operating at 25°C. This limit is derived from its 1.0W power rating and 12V nominal voltage. It's essential to derate this value for higher ambient temperatures to prevent junction damage. Always check the thermal resistance data in the datasheet for your specific PCB layout to ensure long-term reliability in the field.

Is the 1N4742A available in surface mount (SMD) packaging?

The 1N4742A is primarily a through-hole DO-41 package, but surface-mount equivalents like the ZMM4742 are widely available. The ZMM4742 is a MELF package alternative that shares the same 12V, 1W electrical characteristics. We can source both formats through our international logistics program to meet your specific assembly requirements. This flexibility helps you maintain your MRP schedules even when specific package types face global shortages.

How do I calculate the series resistor for a 1N4742A Zener diode?

Calculate the series resistor for a 1N4742A zener diode using the formula R = (Vs - Vz) / (Iz + Il). In this equation, Vs is your input voltage and Vz is the 12V Zener voltage. You should set Iz above the "knee" current but safely below the maximum Izm. This ensures the diode stays in regulation during input fluctuations or load changes, maintaining a stable reference for your downstream components.

What are the common drop-in replacements for the 1N4742A?

Common drop-in replacements for the 1N4742A include the BZX85C12 or the 1N4742A-G, provided they match the 1.0W power rating. For designs shifting toward surface-mount technology, look for the ZMM4742 or the BZD27C12P series. We specialize in identifying these vetted alternatives to ensure supply chain resilience. This approach prevents production delays when tier-1 distributors face extended lead times for legacy axial-lead parts.

Does Adage Components provide automotive-grade 1N4742A diodes?

We provide automotive-grade 1N4742A diodes that meet rigorous reliability and thermal cycling standards. These components are sourced from vetted manufacturers franchised by top 100 distributors to ensure total authenticity. They're perfect for your MRP system and arrive at your facility in real time, on time. By choosing our automotive-grade passives, you maintain compliance with strict industry quality certifications while benefiting from our state-of-the-art warehouse capabilities.

How does manufacturer pricing for Zener diodes differ from retail distribution?

Manufacturer pricing bypasses the high markups retail distributors apply to cover small-batch handling and retail overhead. By choosing our OEM pricing model, you secure one of the best costs in the industry for your high-volume production runs. This provides the same advantages as buying from tier 1 distributors but at a price point optimized for your bottom line. Our amazing international logistics program further reduces the total cost of ownership.
