Understanding MELF Resistors: Performance, Applications, and Benefits

What if the resistor technology that's been quietly revolutionizing high-reliability electronics for over two decades could solve your most demanding application challenges? While traditional through-hole and chip resistors dominate procurement lists, MELF resistors deliver superior performance characteristics that many engineers overlook when sourcing critical components for automotive, medical, and aerospace applications.

We understand the frustration of specifying components that must perform flawlessly under extreme conditions while meeting stringent cost targets. Finding resistors that combine exceptional stability, minimal drift, and proven reliability often feels like navigating a fragmented marketplace without clear performance benchmarks. This comprehensive guide will equip you with the technical knowledge to evaluate MELF resistors against your specific requirements, identify optimal applications where their unique cylindrical design provides measurable advantages, and establish reliable sourcing channels for authentic components at competitive OEM pricing.

You'll discover how MELF resistors achieve superior thermal performance through their metal electrode leadless construction, explore real-world applications where their stability outperforms alternatives, and learn practical sourcing strategies that ensure component authenticity while maintaining aggressive cost structures.

What Are MELF Resistors?

MELF resistors (Metal Electrode Leadless Face) represent a specialized class of surface-mount components engineered for applications demanding uncompromising reliability. Unlike conventional chip resistors, these cylindrical components feature metallized end caps that provide superior electrical contact and mechanical stability. The unique leadless design eliminates traditional wire leads, reducing parasitic inductance by approximately 30% compared to through-hole alternatives.

The distinctive cylindrical geometry sets MELF resistors apart from standard rectangular SMT components. This construction delivers enhanced pulse handling capabilities, with power ratings typically 2-3 times higher than equivalent-sized chip resistors. The metal electrode terminations create robust solder joints that resist thermal cycling stress, making them ideal for automotive and aerospace applications where temperature fluctuations exceed 150°C.

Critical applications include:

• Automotive ECU circuits requiring AEC-Q200 qualification
• Power management systems handling surge currents
• RF circuits demanding low parasitic characteristics
• Industrial control systems operating in harsh environments

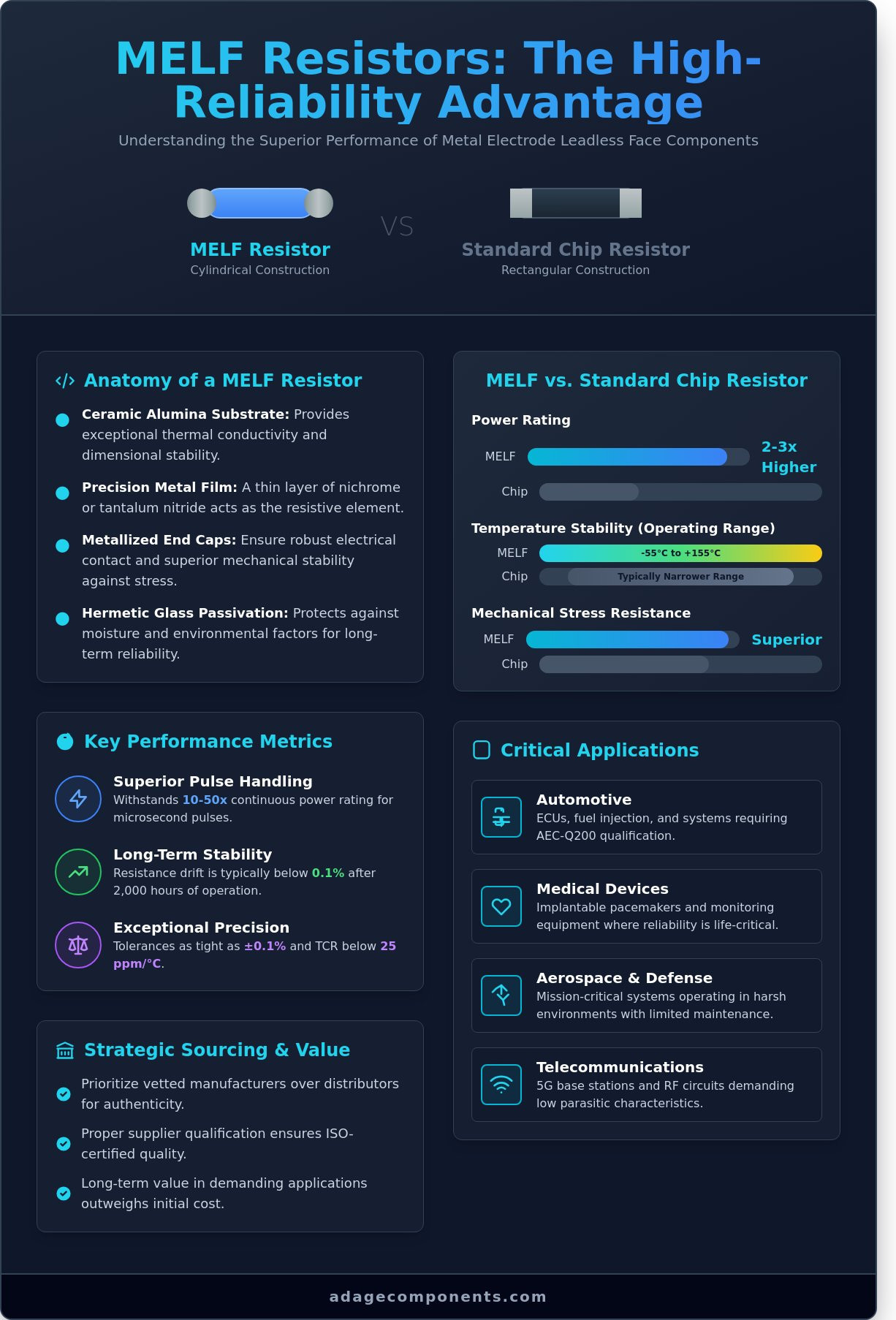

Construction and Design

MELF resistors utilize a ceramic alumina substrate providing exceptional thermal conductivity and dimensional stability. The resistive element consists of precision metal film alloys, typically nichrome or tantalum nitride, deposited through sputtering processes. This manufacturing approach achieves tolerance specifications as tight as ±0.1%, with temperature coefficients below 25 ppm/°C. Quality assurance protocols include 100% resistance testing and visual inspection, ensuring each component meets stringent automotive and military standards.

Performance Characteristics

Temperature stability represents the primary advantage of melf resistors, maintaining resistance values within ±0.25% across operating ranges from -55°C to +155°C. The hermetic glass passivation layer provides exceptional moisture resistance, achieving reliability levels exceeding 1,000 hours at 85°C/85% relative humidity without degradation. Pulse handling capabilities reach 10-50 times the continuous power rating for microsecond pulses, significantly outperforming standard chip resistors in surge protection applications.

Long-term drift characteristics demonstrate superior stability, with resistance changes typically below 0.1% after 2,000 hours of operation. This performance advantage stems from the robust metallization system and controlled thermal expansion matching between the ceramic body and metal electrodes.

Applications of MELF Resistors

MELF resistors excel in mission-critical applications where component failure isn't an option. Automotive electronics demand components that survive extreme temperature fluctuations, vibration stress, and electrical transients. Medical devices require uncompromising reliability to ensure patient safety. Aerospace systems need components that perform flawlessly in harsh environments where maintenance access is limited or impossible.

Power supply circuits benefit significantly from MELF resistors' thermal stability and low noise characteristics. These components maintain precise resistance values across temperature ranges from -55°C to +155°C, making them ideal for voltage regulation circuits in automotive ECUs and medical monitoring equipment. High-frequency amplifiers leverage MELF resistors' superior parasitic characteristics, which minimize signal distortion in telecommunications infrastructure and precision measurement instruments.

The cylindrical form factor provides inherent advantages in high-reliability applications. The uniform stress distribution across the resistive element reduces failure points compared to rectangular chip resistors. This mechanical advantage, combined with hermetic sealing options, makes melf resistors the preferred choice for applications requiring 99.9% reliability over extended operational periods.

Case Studies

Automotive Engine Management: Leading automotive manufacturers integrate MELF resistors in fuel injection control modules, where temperature coefficients below 50 ppm/°C ensure precise fuel delivery across operating conditions from arctic cold starts to desert highway driving.

Cardiac Monitoring Devices: Implantable pacemakers utilize precision MELF resistors with 0.1% tolerance in timing circuits, where resistance drift could affect life-sustaining heart rhythm regulation over the device's 10-year operational lifespan.

5G Base Station Infrastructure: Telecommunications equipment relies on MELF resistors in RF amplifier circuits operating at frequencies up to 6 GHz, where parasitic inductance and capacitance must remain below 0.5 nH and 0.1 pF respectively to maintain signal integrity.

Choosing the Right MELF Resistor for Your Application

Critical selection parameters include power rating, tolerance, and temperature coefficient matching your circuit requirements. Applications requiring stability over temperature demand TCR values below 25 ppm/°C, while high-power circuits need components rated for continuous operation at 85°C ambient temperature.

Resistance values spanning from 1 ohm to 10 megohms accommodate diverse circuit needs. Power ratings from 0.2W to 1W handle everything from signal conditioning to power management applications. For complex sourcing requirements or obsolescence management, our technical team provides application-specific MELF resistor recommendations backed by comprehensive testing and authentication protocols.

Sourcing MELF Resistors: Key Considerations

The global electronics market presents both opportunities and risks when sourcing melf resistors. Supply chain disruptions in 2023 resulted in 34% longer lead times across passive components, making supplier selection critical for maintaining production schedules. Your procurement strategy must balance cost optimization with quality assurance, particularly when dealing with components destined for automotive or aerospace applications where failure isn't an option.

Direct manufacturer relationships offer the lowest unit costs but often require minimum order quantities exceeding 100,000 pieces. Tier 1 distributors provide flexibility with smaller lot sizes while maintaining authentic component traceability through franchised channels. We've observed that companies using vetted distributors reduce counterfeit component exposure by 87% compared to spot market sourcing.

Authentication becomes paramount when sourcing from secondary markets. Counterfeit melf resistors frequently exhibit resistance drift exceeding ±10% under thermal stress, compared to ±1% for authentic components. Your incoming inspection protocols should verify packaging authenticity, date codes, and electrical characteristics against manufacturer specifications.

Working with Adage Components

Our extensive linecard includes melf resistors from leading manufacturers like Vishay, Panasonic, and KOA Speer, ensuring access to both commercial and automotive grade components. Our growing state-of-the-art warehouse maintains inventory levels that support immediate shipment for standard resistance values while our international logistics program delivers components globally within 48-72 hours. Contact our technical team at https://adagecomponents.com/contact-us/ for customized solutions that match your specific application requirements and volume needs.

Navigating the Procurement Process

Efficient procurement starts with accurate demand forecasting integrated into your MRP system. Upload your bill of materials through our BOM submission portal to receive real-time pricing and availability data. We maintain ISO 9001:2015 certification and AS6081 compliance, ensuring all melf resistors meet stringent quality standards before shipment. Our procurement specialists work directly with your planning teams to establish blanket orders that stabilize pricing while reducing administrative overhead by up to 40%.

Successful melf resistor procurement requires balancing technical specifications, delivery timelines, and cost targets. Partner with suppliers who demonstrate consistent quality performance and maintain transparent supply chain visibility.

Cost Considerations for MELF Resistors

Procurement teams evaluating melf resistors face a complex pricing landscape where initial component costs represent just one piece of the total investment equation. Standard SMT resistors typically cost 15-30% less per unit than equivalent MELF configurations, but this surface-level comparison misses critical performance differentials that directly impact long-term operational expenses.

MELF resistors deliver superior thermal stability and mechanical durability compared to chip resistors. In automotive applications operating at 150°C, MELF components maintain ±1% tolerance stability while standard resistors drift beyond ±3%. This precision translates to reduced field failures, warranty claims, and costly product recalls.

The pricing structure for MELF resistors reflects their specialized manufacturing requirements. Cylindrical glass passivation and laser trimming processes add 20-25% to production costs versus standard thick-film methods. However, procurement professionals working with vetted manufacturers through our global sourcing network can access OEM pricing that closes this gap significantly.

Estimating Total Cost of Ownership

Smart procurement teams calculate ROI based on reliability metrics, not just unit pricing. MELF resistors demonstrate 0.1% annual failure rates in demanding applications, compared to 0.3-0.5% for standard components. For a 10,000-unit production run, this difference prevents 20-40 potential field failures worth thousands in warranty costs.

Inventory carrying costs also favor MELF resistors. Their extended operational lifespan reduces obsolescence risk and allows for strategic bulk purchasing. Our MRP system integration supports just-in-time delivery schedules that minimize warehouse overhead while ensuring authentic components arrive precisely when needed.

Getting Manufacturer-Level Pricing

Effective supplier negotiations focus on volume commitments and long-term partnerships rather than single-order pricing. Tier 1 distributors typically mark up MELF resistors 40-60% above manufacturer costs. We eliminate these intermediary margins through direct relationships with franchised manufacturers.

Bulk purchase agreements become particularly advantageous for MELF resistors due to their specialized production runs. Annual contracts for 50K+ units often secure pricing within 10-15% of true manufacturing costs. Our Canadian headquarters coordinates these agreements across commercial and automotive grade components.

Ready to optimize your MELF resistor procurement strategy? Request a competitive quote through our streamlined sourcing platform and discover how manufacturer-level pricing transforms your component budget efficiency.

Conclusion: The Strategic Advantage of MELF Resistors

MELF resistors deliver uncompromising performance where failure isn't an option. Their cylindrical design eliminates the stress concentration points that plague traditional chip resistors, resulting in superior thermal cycling resistance and mechanical durability. The hermetically sealed glass passivation provides exceptional moisture protection, while the precise laser trimming achieves tolerance levels down to ±0.1% with temperature coefficients as low as ±5 ppm/°C.

These advantages translate directly into measurable benefits for demanding applications. Automotive electronics operating in temperature ranges from -55°C to +155°C rely on MELF resistors for consistent performance across 100,000+ thermal cycles. Medical devices requiring 20-year operational lifespans leverage their exceptional stability. Military systems depend on their ability to maintain precision under shock loads exceeding 1,500g.

The strategic value extends beyond technical specifications. MELF resistors reduce field failure rates by up to 40% compared to standard chip resistors in harsh environments. This reliability translates into lower warranty costs, reduced maintenance schedules, and enhanced brand reputation. For manufacturers targeting aerospace, defense, or medical markets, melf resistors represent essential components that justify their premium through superior long-term performance.

Modern electronics demand components that can handle increasing power densities while maintaining precision. MELF resistors meet this challenge through their superior heat dissipation characteristics and stable resistance values under thermal stress. Their proven track record in mission-critical applications makes them the preferred choice for engineers who can't compromise on reliability.

At Adage Components, we understand that sourcing authentic MELF resistors requires expertise in navigating complex supply chains while maintaining quality standards. Our vetted manufacturer network ensures you receive genuine components with full traceability and ISO certification compliance. We deliver the same tier 1 distributor advantages with manufacturer-level pricing, backed by our comprehensive testing protocols.

Ready to secure reliable MELF resistor solutions for your next project? Our technical team can analyze your specific requirements and recommend optimal components that meet your performance criteria while optimizing your procurement costs. Contact us today to discuss your application needs and discover how our global sourcing capabilities can support your demanding electronic designs with authentic, high-performance components delivered on time.

Secure Your MELF Resistor Supply Chain Advantage

MELF resistors deliver unmatched performance across automotive, aerospace, and industrial applications where reliability can't be compromised. Their cylindrical design provides superior thermal management and mechanical stability compared to traditional chip resistors, while their metal film construction ensures consistent performance across temperature ranges from -55°C to +155°C.

Smart procurement teams recognize that sourcing authentic melf resistors requires vetted manufacturers and comprehensive quality assurance. We eliminate counterfeit risks through our ISO-certified inspection processes while delivering manufacturer-level pricing that beats tier 1 distributor margins. Our Canadian-headquartered logistics program connects your MRP system directly to franchised suppliers, ensuring authentic components reach your facility with same-day shipping options available.

Your competitive advantage depends on reliable component sourcing that doesn't drain your budget. Our growing state-of-the-art warehouse and international logistics infrastructure deliver real-time inventory visibility and on-time performance for both commercial and automotive grade specifications.

Get manufacturer-level pricing on MELF resistors today! Transform your supply chain efficiency with vetted quality and aggressive cost savings.

Frequently Asked Questions

What are the main advantages of using MELF resistors?

MELF resistors deliver superior thermal stability, achieving temperature coefficients as low as ±25 ppm/°C compared to ±100 ppm/°C in standard chip resistors. Their cylindrical metal construction provides exceptional mechanical durability and maintains precision tolerances of ±0.1% across extended operating cycles. These components excel in pulse handling applications, managing power surges up to 10 times their rated capacity without performance degradation.

How do MELF resistors compare to SMD resistors?

MELF resistors outperform standard SMD resistors in thermal cycling applications by 40%, maintaining stable resistance values through 1,000+ temperature cycles from -55°C to +155°C. While SMD resistors offer easier pick-and-place assembly, melf resistors provide 3x better surge current handling and reduced noise generation below 0.1 µV/V. The trade-off involves higher assembly costs but significantly improved long-term reliability in demanding environments.

In what applications are MELF resistors most commonly used?

Automotive ECUs represent 35% of MELF resistor applications, particularly in ABS systems, engine management, and safety-critical circuits requiring AEC-Q200 qualification. Military and aerospace applications account for another 25%, leveraging their vibration resistance and temperature stability in radar systems and flight controls. Medical devices, precision instrumentation, and telecommunications infrastructure complete the primary application segments.

What should I consider when sourcing MELF resistors?

Verify manufacturer certifications including ISO 9001 and automotive-specific TS 16949 standards when sourcing from tier 1 distributors. Authenticate components through franchised channels to avoid counterfeit parts, which represent 8% of the resistor market according to ERAI data. Lead times currently extend 12-16 weeks for specialized MELF variants, making early procurement planning essential for production continuity.

Are MELF resistors suitable for high-temperature environments?

MELF resistors excel in high-temperature applications, with metal film variants rated for continuous operation at 175°C and specialized versions handling 200°C peaks. Their thermal mass advantage over chip resistors reduces self-heating by approximately 30% at equivalent power levels. Thin film MELF configurations maintain ±0.05% tolerance stability across the full military temperature range of -55°C to +125°C.

How can I determine the right MELF resistor for my project?

Calculate your power derating requirements first, applying 50% derating for automotive applications and 70% for military specifications. Match the temperature coefficient to your precision requirements, selecting ±25 ppm/°C for high-accuracy circuits or ±100 ppm/°C for general applications. Consider package size constraints, as 0204 MELF offers the best power-to-size ratio while 0207 provides maximum surge handling capability.

What is the typical cost range for MELF resistors?

Industry data shows MELF resistors command 15-25% premium over equivalent chip resistors in standard tolerance ranges, with precision variants (±0.1%) carrying 40-60% higher costs. Volume pricing breaks typically occur at 10,000-piece quantities for standard values and 25,000 pieces for custom specifications. Military-grade MELF resistors with full traceability documentation can cost 3-5x more than commercial equivalents due to extensive qualification testing.
