Benefits of Using MELF Resistors in Design: The Engineer’s 2026 Guide

What if the most significant risk to your high-reliability system is a component often treated as a commodity? In a market where resistor lead times have stretched to 15 weeks as of May 2026, the technical benefits of using MELF resistors in design provide a critical advantage for automotive and industrial applications. You likely already understand that standard thick-film chips often fail under the thermal stress and mechanical vibration found in mission-critical environments.

We recognize the pressure to balance these performance requirements with a sustainable BOM. This guide explains why MELF construction remains the gold standard for long-term stability and how you can bypass the significant markups of Tier 1 distributors. You'll learn how Adage Components provides a direct bridge to manufacturer pricing while maintaining the rigorous quality standards demanded by AEC-Q200 Rev. E. We'll show you how to integrate these high-precision parts into your MRP system without the typical logistical friction or supply chain volatility.

What Are MELF Resistors and Why Do They Matter in 2026?

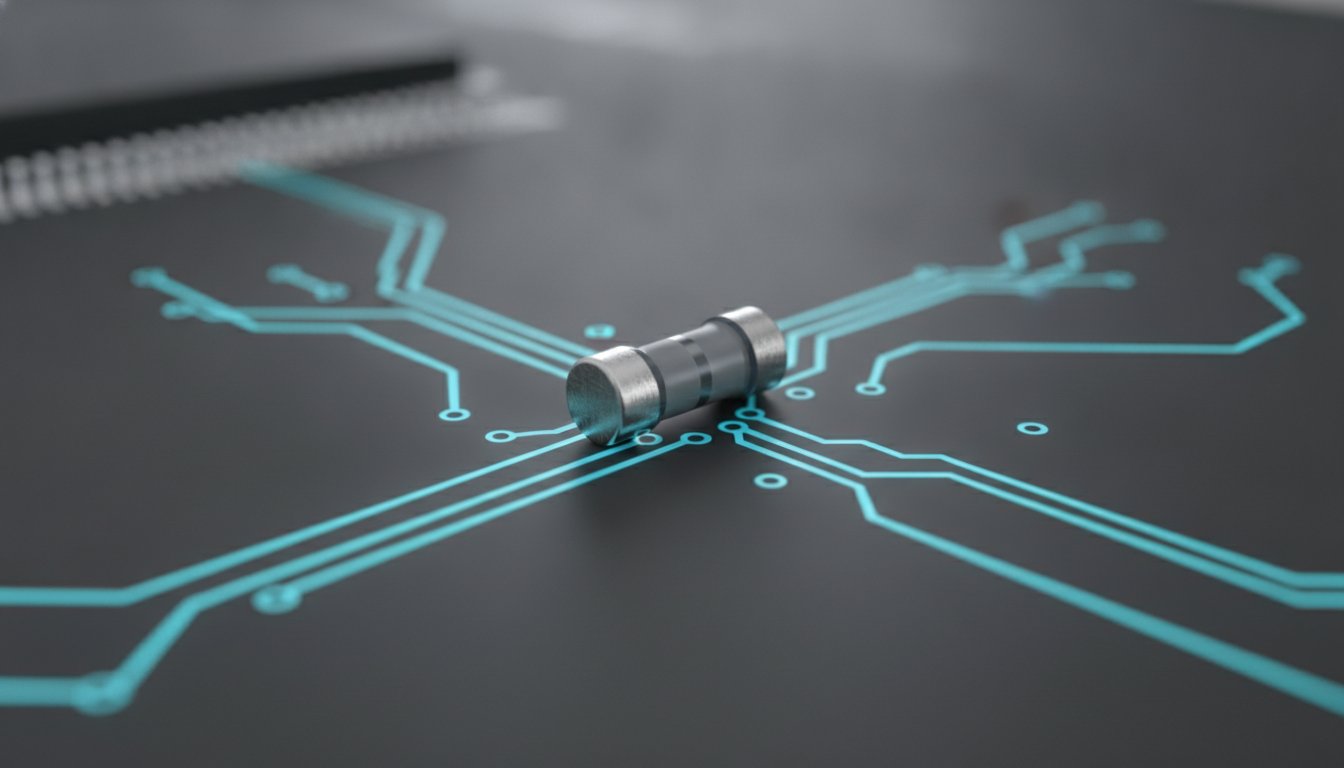

A Metal Electrode Leadless Face (MELF) resistor is a cylindrical, surface-mount component designed for high-performance environments. While standard chip resistors dominate consumer electronics, the benefits of using MELF resistors in design are indispensable for circuits that can't afford to fail. These components utilize a metal film layer deposited onto a high-purity ceramic core, providing a level of precision and thermal stability that flat thick-film chips simply can't match. As of 2026, the shift toward these high-precision parts has accelerated as AI infrastructure and vehicle electrification demand greater power density and reliability.

To better understand the physical characteristics and identification of these components, watch this helpful video:

The Anatomy of a MELF Resistor

The structural integrity of a MELF resistor starts with its high-purity alumina ceramic core. This core acts as a superior heat sink, dissipating thermal energy more effectively than the flat substrates found in standard chips. During manufacturing, a specialized metal film is deposited with extreme precision to ensure low noise and long-term resistance stability. This is capped with robust, solderable end-caps that provide a massive contact area. Unlike flat chips, the cylindrical shape eliminates the "face-up" orientation requirement, simplifying high-speed assembly while offering a larger effective area for the resistive element. At Adage Components, we ensure every unit is sourced from vetted manufacturers to maintain these exact mechanical tolerances.

Key Applications: Where MELF is Non-Negotiable

In the automotive sector, MELF resistors are the standard for engine control units and advanced safety systems. We support these designs with components that meet AEC-Q200 Rev. E standards, ensuring durability under extreme vibration and thermal cycling. Industrial designers utilize them in power monitoring and high-vibration machinery where mechanical stress can crack standard chip solder joints. For medical diagnostic equipment, where even a minor drift can compromise patient data, the long-term stability of MELF technology is essential.

Sourcing these high-spec parts often leads to inflated costs through Tier 1 distributors. Adage Components functions as a strategic partner, offering manufacturer pricing that keeps your BOM under control. By integrating our vetted supply chain directly into your MRP system, you secure authentic, high-reliability resistors with short lead times, even as the global market faces 15-week delays for similar precision components. We bridge the gap between technical necessity and fiscal responsibility.

Technical Benefits: The Science of MELF Reliability

The technical benefits of using MELF resistors in design extend far beyond simple durability. While standard thick-film chips often succumb to thermal fatigue, the cylindrical architecture of a MELF resistor provides an inherent advantage in pulse load handling and long-term stability. This isn't just a marginal improvement; it's a fundamental shift in how a circuit manages energy surges and environmental stress. For engineers tasked with maintaining precision over thousands of hours of operation, the physics of the MELF structure offer a level of reliability that flat chips can't replicate.

Pulse Power and Surge Resistance

Standard flat chip resistors typically use an L-cut laser trimming pattern. This creates high-current density at the tip of the cut, leading to localized hot spots that can cause component failure during a surge. In contrast, MELF resistors utilize a spiral trimming pattern that distributes energy across the entire cylindrical surface. This design significantly enhances pulse load capability by preventing the concentration of heat. Surge resistance is the component's ability to withstand momentary high-voltage transients without catastrophic failure or resistance drift. By implementing MELF technology, you directly reduce the risk of field failures and the associated costs of warranty claims, protecting both your product's reputation and your company's bottom line.

Thermal Management and Environmental Stability

Heat dissipation is a direct function of surface area. A cylindrical body offers a significantly larger surface area than a flat rectangular chip of the same footprint. This allows for cooler operation under high-power conditions, which leads to a lower Temperature Coefficient of Resistance (TCR). Your circuit maintains precision even as ambient temperatures fluctuate in extreme climates. Additionally, the specialized construction provides superior resistance to moisture and sulfur, common causes of corrosion in harsh industrial settings.

We ensure all our resistors come from vetted manufacturers that adhere to strict ISO certifications, guaranteeing that these technical specifications are verified performance metrics rather than vague promises. Adage Components provides these high-spec parts at manufacturer pricing, allowing you to implement the same performance as Tier 1 brands without the excessive distribution markups. As you integrate these components into your MRP system, you gain the confidence of a stable, high-reliability supply chain that delivers in real time.

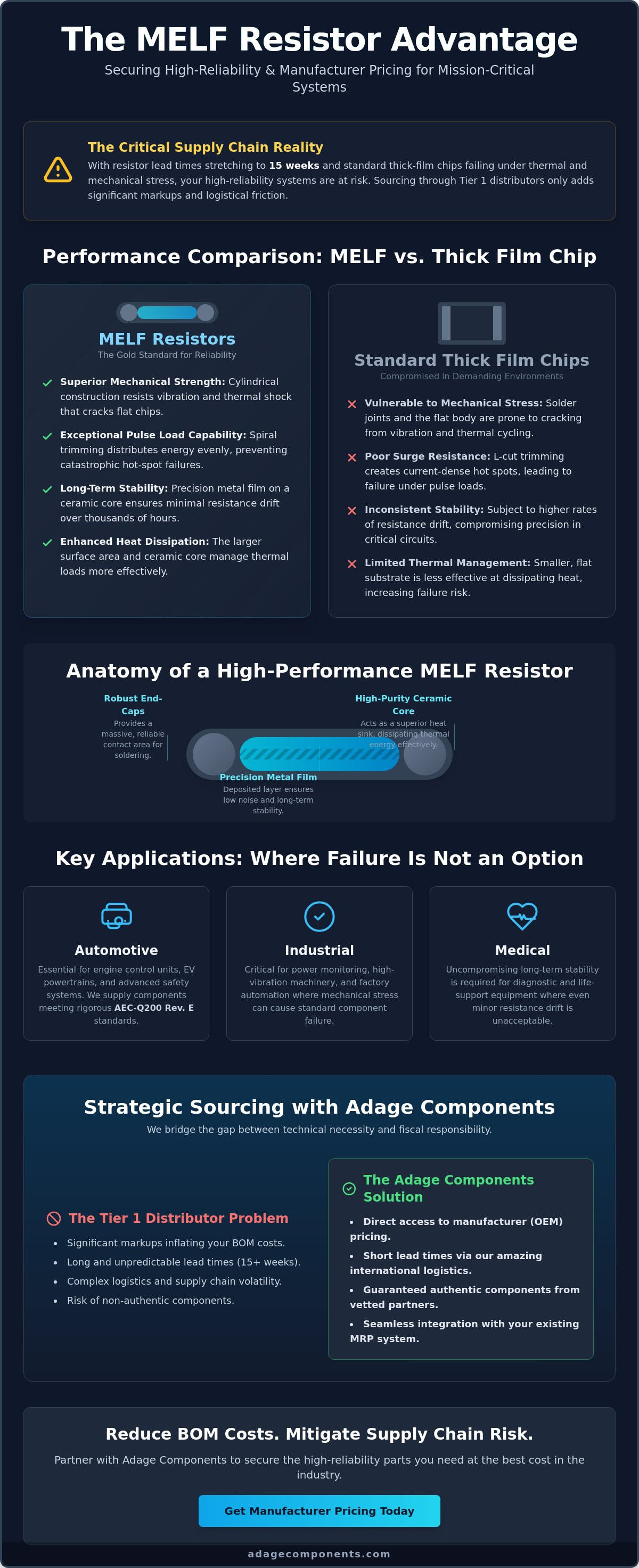

MELF vs. Thick Film Chip Resistors: A Performance Comparison

Choosing between MELF and standard thick film chip resistors requires an analysis of more than just initial unit cost. While thick film chips are economical for general-purpose applications, the benefits of using MELF resistors in design become clear when evaluating performance under high-voltage conditions. MELF resistors are the preferred choice for high-voltage applications, often supporting 500V or higher, where standard rectangular chips face dielectric breakdown or surface arcing. This capability allows for more compact power supply designs without compromising safety or regulatory compliance. By integrating these components, you eliminate the need for series-connected chip resistors, saving valuable PCB real estate.

Mechanical Robustness and Vibration Resistance

Mechanical failure often occurs at the solder joint during PCB bending or high-frequency vibration. The cylindrical architecture of MELF components allows for a larger, more uniform solder fillet compared to the flat pads of standard chips. This structure absorbs mechanical stress more effectively, significantly reducing the risk of joint cracking. In automotive grade applications, where AEC-Q200 Rev. E compliance is mandatory, this robustness is a primary requirement. We ensure all our MELF components are sourced from vetted manufacturers, providing the mechanical integrity necessary for mission-critical hardware. By securing these parts at OEM pricing, you protect your circuit from physical failure without the markups typically associated with Tier 1 distributors.

Precision and Noise Performance

Precision analog circuits require a low noise floor to maintain signal integrity. Standard thick film resistors exhibit high 1/f noise, also known as flicker noise, due to the random nature of the resistive paste. Thin film MELF Resistors utilize a sputtered metal film that creates a much more homogeneous resistive layer. This results in significantly lower noise characteristics and better long-term stability over thousands of hours of operation. For designers working on sensor interfaces or audio processing, this precision is non-negotiable. Adage Components provides these high-precision parts through a state-of-the-art warehouse system, ensuring they arrive authentic and ready for immediate integration into your MRP system.

Some procurement teams hesitate to adopt MELF technology due to the rolling myth during assembly. Modern pick-and-place equipment has long since evolved to handle cylindrical components with the same efficiency as flat chips. Vacuum nozzles and vision systems now ensure high-speed placement without orientation errors. When you partner with us, you gain access to manufacturer pricing that makes the transition from thick film to MELF economically viable. We help you justify the BOM cost by focusing on the total lifecycle value and the technical benefits of using MELF resistors in design. By bypassing franchised distributors, you secure a superior component while maintaining your competitive edge in a volatile market.

Design Considerations: Implementing MELF in Your Next Project

The technical benefits of using MELF resistors in design are only fully realized when the PCB layout supports their unique physical properties. Unlike flat chip resistors, MELF components require specific pad geometries to ensure self-alignment during reflow. Precision requires planning. You must optimize footprints for 0102, 0204, and 0207 dimensions to prevent assembly issues like tombstoning. Symmetrical pad design and accurate solder mask openings are critical. When heat sinking is unbalanced, the surface tension of the molten solder can pull the cylindrical body upright. We recommend a controlled reflow profile that accounts for the slightly higher thermal mass of the MELF body compared to standard chips.

Thermal layout strategies should leverage the MELF's cylindrical shape. While the body naturally dissipates heat better than a flat rectangle, using large copper planes on the PCB further enhances this advantage. This is especially vital in high-density AI server layouts or automotive power modules where ambient temperatures are high. Additionally, color code identification remains a reliable verification tool during prototyping and manual QA. Unlike the alphanumeric codes on chips that can be obscured by solder or orientation, the bands on a MELF resistor are visible from any angle, simplifying the inspection process in your state-of-the-art warehouse or production line.

Selecting the Right MELF Size

Choosing the correct size involves balancing power ratings with available real estate. Micro MELF (0102) is ideal for signal processing where space is at a premium, while Mini MELF (0204) offers a middle ground for general-purpose high-reliability circuits. For power-intensive applications, the Standard MELF (0207) can handle up to 1W, providing a robust solution for surge-prone environments. Adage Components maintains these various sizes in our global stocking program, ensuring you have access to the right footprint without the 15-week lead times currently impacting the market.

Prototyping and Sourcing for Production

Transitioning from expensive brand-name MELFs to high-quality private label alternatives is a strategic move for any procurement team. We provide a comprehensive BOM cost analysis to justify MELF implementation at scale, showing that you don't have to sacrifice performance for price. By using our BOM submission form, you can quickly identify drop-in MELF replacements that offer the same AEC-Q200 Rev. E compliance as Tier 1 brands. Our international logistics program ensures these authentic parts reach your facility in real time, on time, and fully integrated with your MRP system.

Ready to optimize your next high-reliability project with manufacturer pricing? Explore our full range of authentic, ISO-certified components on our linecard.

Strategic Sourcing: Why Adage Components for MELF Resistors?

The technical benefits of using MELF resistors in design are undeniable, yet procurement professionals often face a difficult choice between high-performance parts and strict budget constraints. Tier 1 distributors frequently add significant markups that can make MELF technology appear cost-prohibitive for large-scale production. Adage Components eliminates this barrier. We act as your strategic partner, delivering the exact technical specifications your engineers require at manufacturer pricing. This approach allows your team to maintain the highest reliability standards without compromising the project's bottom line or the integrity of your BOM.

Bypassing Tier 1 Markups with Private Label Excellence

Franchised distributors operate on models that prioritize high-volume retail margins. We offer the "Adage Advantage" by providing high-spec components directly from vetted manufacturers. Our rigorous manufacturing audits ensure that every MELF resistor is authentic and fully compliant with all ISO certifications. We don't just supply parts; we provide a superior alternative for volume orders. We ensure that your automotive and commercial grade components meet the same rigorous standards as the biggest brand names in the industry. By securing OEM pricing through us, you gain a competitive edge in a market where resistor costs have seen general increases of 8-20% as of early 2026.

Global Supply Chain and Logistics Integration

Efficiency in the supply chain is as critical as the components themselves. Our amazing international logistics program is designed to move parts from our state-of-the-art warehouse to your facility in real time, on time. We understand the high stakes of industrial procurement, where the 15-week lead times reported in May 2026 can derail an entire production schedule. Our global stocking program mitigates these risks, providing the buffer your MRP system needs to function seamlessly. Whether you're dealing with the latest AEC-Q200 Rev. E requirements or navigating the July 2026 RoHS lead-related exemption revisions, we ensure your supply chain remains compliant and uninterrupted.

Our logistics infrastructure integrates directly with your existing MRP system to reduce material costs and minimize inventory overhead. We invite you to view our complete range of passive components on our linecard. Our team is built to solve difficult sourcing puzzles, acting as a bridge between a fragmented marketplace and your specific operational needs. Contact Adage Components today to initiate a professional BOM cost analysis and discover how we can enhance your circuit's reliability while protecting your margins.

Secure Your Design’s Future with Strategic Sourcing

The shift toward high-reliability electronics in 2026 demands a move away from fragile commodity components. MELF resistors provide the essential pulse load capability and long-term thermal stability required for AEC-Q200 Rev. E compliance. By bypassing the inflated markups of Tier 1 distributors, your procurement team can maintain these elite standards while significantly reducing overall BOM costs. The technical benefits of using MELF resistors in design are clear; however, the true strategic advantage is found in a partnership that prioritizes both precision and fiscal efficiency.

Adage Components stands ready as your elite partner, offering manufacturer-direct OEM pricing backed by ISO-certified quality assurance. Our global logistics and stocking programs are engineered to integrate seamlessly with your existing MRP system, ensuring that authentic, vetted components reach your facility in real time. We don't just provide parts; we provide the stability your supply chain requires in a volatile global market. Don't let extended lead times or distributor markups compromise your next project. Explore our linecard and submit your BOM today for a MELF cost-savings analysis. We look forward to optimizing your production with disciplined expertise and competitive pricing.

Frequently Asked Questions

What is the main benefit of using a MELF resistor over a flat chip resistor?

The primary advantage is the cylindrical body's ability to absorb mechanical stress during PCB bending and vibration. While flat chip resistors often suffer from solder joint fatigue, MELF components create a more uniform fillet that protects the resistive element. These technical benefits of using MELF resistors in design ensure long-term reliability in high-vibration industrial environments.

Are MELF resistors compatible with standard surface-mount assembly processes?

They are fully compatible with high-speed SMT lines and modern pick-and-place equipment. Advanced vacuum nozzles and vision systems eliminate the historical concerns regarding cylindrical parts rolling during placement. We ensure all our components are packaged for seamless integration into your existing automated assembly systems without requiring specialized tooling.

How does the pulse load capability of MELF resistors compare to thick film types?

MELF resistors handle energy surges far more effectively due to their spiral-cut resistive film. This pattern prevents the localized hot spots that typically cause dielectric breakdown in standard thick film chips. By choosing these resistors, you secure a component capable of withstanding momentary high-voltage transients, significantly lowering the risk of field failures.

Can MELF resistors be used in automotive applications?

They are the preferred standard for automotive grade electronics requiring AEC-Q200 Rev. E compliance. We provide authentic, vetted resistors for engine control units and advanced driver-assistance systems (ADAS) where stability is non-negotiable. Our manufacturer-direct pricing allows you to maintain these high safety standards while optimizing your total BOM cost.

What are the common sizes for MELF resistors in modern PCB design?

Modern designs typically utilize 0102 (Micro MELF), 0204 (Mini MELF), and 0207 (Standard MELF) footprints. Each size offers a different balance of power rating and PCB space, with the 0207 size supporting up to 1W in certain configurations. We maintain a global stocking program across all three sizes to ensure availability for your production schedule.

Why are MELF resistors considered "low noise" components?

Low noise performance is a result of the sputtered thin-film technology used in MELF construction. Unlike the composite pastes in thick film resistors that generate significant current noise, the homogeneous metal layer in a MELF resistor provides a stable, low-noise signal path. This makes them ideal for precision analog sensor interfaces and high-fidelity audio circuits.

How does Adage Components ensure the quality of its private label MELF resistors?

We implement a multi-stage inspection process and source exclusively from partner suppliers who meet strict ISO certifications. Every component is verified for authenticity and performance within our state-of-the-art warehouse before shipping. This disciplined expertise guarantees that the technical benefits of using MELF resistors in design are backed by documented quality and reliability.

Can I find drop-in MELF replacements for major Tier 1 brands?

Yes, we specialize in providing drop-in replacements that match the electrical and mechanical specifications of major brand-name manufacturers. By bypassing the markups of franchised distributors, you secure high-performance components at OEM pricing. Our team uses your MRP data to identify the most cost-effective, high-reliability alternatives for your specific application.
