Decoding RC0603FR-07100KL: Datasheet Specifications and Part Breakdown

The rc0603fr 07100kl is a cornerstone of modern circuit design, representing a high-reliability thick film chip resistor produced by Yageo. As a fundamental component in Surface-Mount Technology (SMT), this part offers the stability required for precision electronics. Understanding its specific parameters is vital for engineers who need to maintain signal integrity while procurement teams seek to optimize BOM costs through vetted manufacturers.

To better understand this concept, watch this helpful video:

Yageo RC Series Part Number Nomenclature Explained

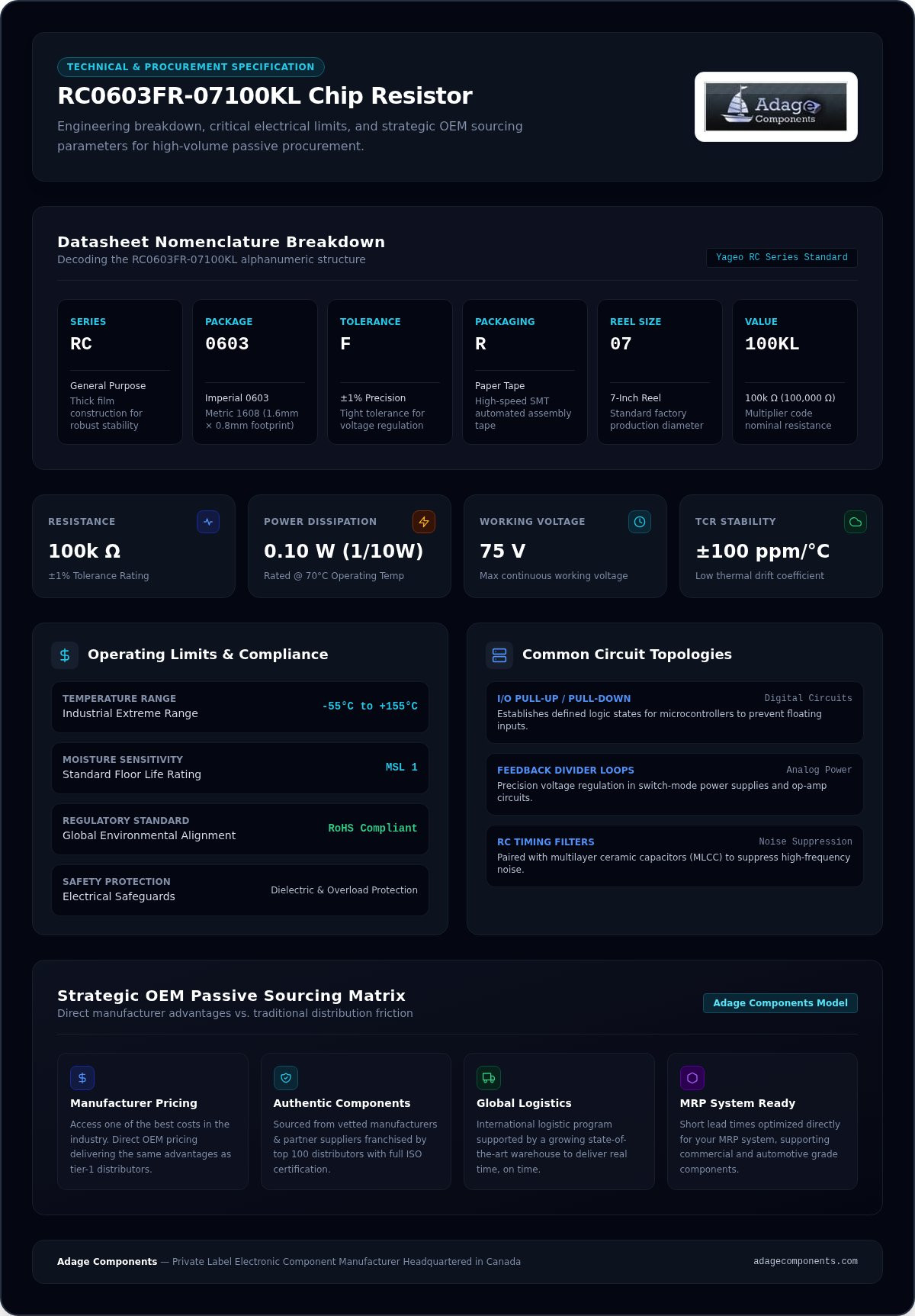

The alphanumeric string of the rc0603fr 07100kl isn't arbitrary; it provides a complete technical profile. The "RC" prefix designates Yageo's general-purpose thick film construction, known for its robust performance in diverse environments. "0603" refers to the imperial package size, which translates to a metric 1608 footprint (1.6mm x 0.8mm). The land pattern geometry is standardized, ensuring compatibility across various PCB layouts. The "F" indicator signifies a ±1% resistance tolerance, providing the precision necessary for voltage regulation. "R" signifies paper tape packaging, while "07" denotes the standard 7-inch reel diameter. Finally, "100KL" translates to a 100,000 ohm (100k) nominal resistance value using a standard multiplier code.

Key Electrical and Environmental Operating Limits

Performance reliability depends on adhering to specific operating boundaries. This resistor is rated for 1/10W (0.10 Watt) of power dissipation at 70°C, with a maximum working voltage of 75V. Its temperature coefficient of resistance (TCR) is specified at ±100 ppm/°C, ensuring minimal resistance drift during thermal fluctuations. Adage Components provides these authentic components at manufacturer pricing, ensuring your facility receives automotive or commercial grade parts that fit your MRP system perfectly.

• Operating Temperature: The range spans from -55°C up to +155°C, suitable for extreme industrial conditions.
• Safety Margins: Includes high dielectric withstanding voltage and overload voltage protection.
• Compliance Profile: The part features a Moisture Sensitivity Level of MSL 1 and full RoHS compliance for global regulatory alignment.

You don't have to settle for tier-1 distributor markups when you can access the same quality through our partner suppliers. By sourcing through our growing state-of-the-art warehouse, you get the same advantages as buying from tier 1 distributors but at OEM pricing. Check our linecard to verify current availability and integrate these parts into your next production run.

Circuit Applications and Engineering Performance of 100k 0603 Resistors

Deploying the rc0603fr 07100kl in high-density printed circuit boards requires a deep understanding of its electrical behavior under load. Thick film architectures provide excellent pulse handling capabilities and surge performance, making them ideal for high-volume manufacturing. However, engineering teams must evaluate thermal and mechanical constraints to prevent field failures.

Common High-Volume Circuit Topologies

The 100k ohm nominal resistance value is heavily utilized across multiple digital and analog circuit designs. In digital hardware, these components serve as I/O pull-up or pull-down resistors to establish defined logic states for microcontrollers, preventing floating inputs. In analog power electronics, they form critical feedback divider loops in switch-mode power supplies and operational amplifier circuits, maintaining voltage regulation within tight tolerances. Additionally, they are paired with multilayer ceramic capacitors to create precise RC timing filters that suppress high-frequency noise.

Thermal Management and Power Derating Guidelines

Calculating power dissipation is straightforward using standard formulas: P = I²R or V²/R. While the rc0603fr 07100kl handles 0.10W under normal conditions, operating environments often exceed baseline limits. Designers must consult thermal derating curves when ambient temperatures rise above 70°C, as the component's effective power capacity drops linearly to zero at 155°C. Implementing solid PCB trace heat sinking practices is mandatory to dissipate thermal energy and eliminate localized hot spots inside compact product enclosures.

SMT Assembly and Soldering Reliability

Automated assembly lines demand strict mechanical precision when handling the imperial 0603 footprint. High-speed pick-and-place systems must maintain exact alignment to ensure reliable pad contact. Reflow temperature profiles must comply with J-STD-020 lead-free soldering requirements to ensure optimal joint formation without damaging the internal thick film structure. Furthermore, engineers must balance pad dimensions and thermal mass across the board layout. Unequal heating during reflow can cause tombstoning, a common defect where unbalanced surface tension pulls the component upright.

Sourcing these passives through verified manufacturers eliminates assembly defects caused by dimensional variations. Adage Components offers both commercial and automotive grade components that comply with all ISO certifications. You can review our current factory stock and alternative footprints by exploring our comprehensive product linecard today. Our growing state-of-the-art warehouse infrastructure ensures that your production lines remain fully operational with short leading times.
