RC0402JR-070RL: Specs and Sourcing for 0402 Resistors

The smallest component on your bill of materials is often the single greatest threat to your production schedule. When standard commodity jumpers like the rc0402jr 070rl face unexpected distributor stockouts or factory lead times stretching past 20 weeks, entire SMT lines can grind to a halt over a simple zero-ohm bridge. You shouldn't have to pay steep catalog premiums or gamble on unverified broker channels just to keep your surface-mount assembly runs on track.

In this guide, you'll master the technical specifications of the RC0402JR-070RL, decode its complete part numbering schema, and verify critical electrical ratings like maximum jumper current and footprint tolerances. We'll also examine strategic supply chain solutions, showing you how sourcing authentic components through vetted manufacturers franchised by top 100 distributors bypasses catalog bottlenecks. You will discover how to capture genuine OEM pricing and establish a dependable inventory program that feeds your factory MRP system in real time, on time.

RC0402JR-070RL Overview: Deciphering the 0402 0-Ohm Resistor

Surface mount design relies heavily on standardized passives to bridge physical routing gaps and set hardware options. The rc0402jr 070rl is a thick film zero-ohm SMD component packaged on paper tape, manufactured by Yageo within their universal RC general-purpose lineup. Built using screen-printed metal glaze electrodes deposited across high-grade ceramic substrates, this passive device functions as an efficient surface-mount jumper. Rather than introducing resistance, it provides reliable PCB bridging, zero-ohm circuit links, and hardware configuration options without requiring manual wire links or costly board redesigns.

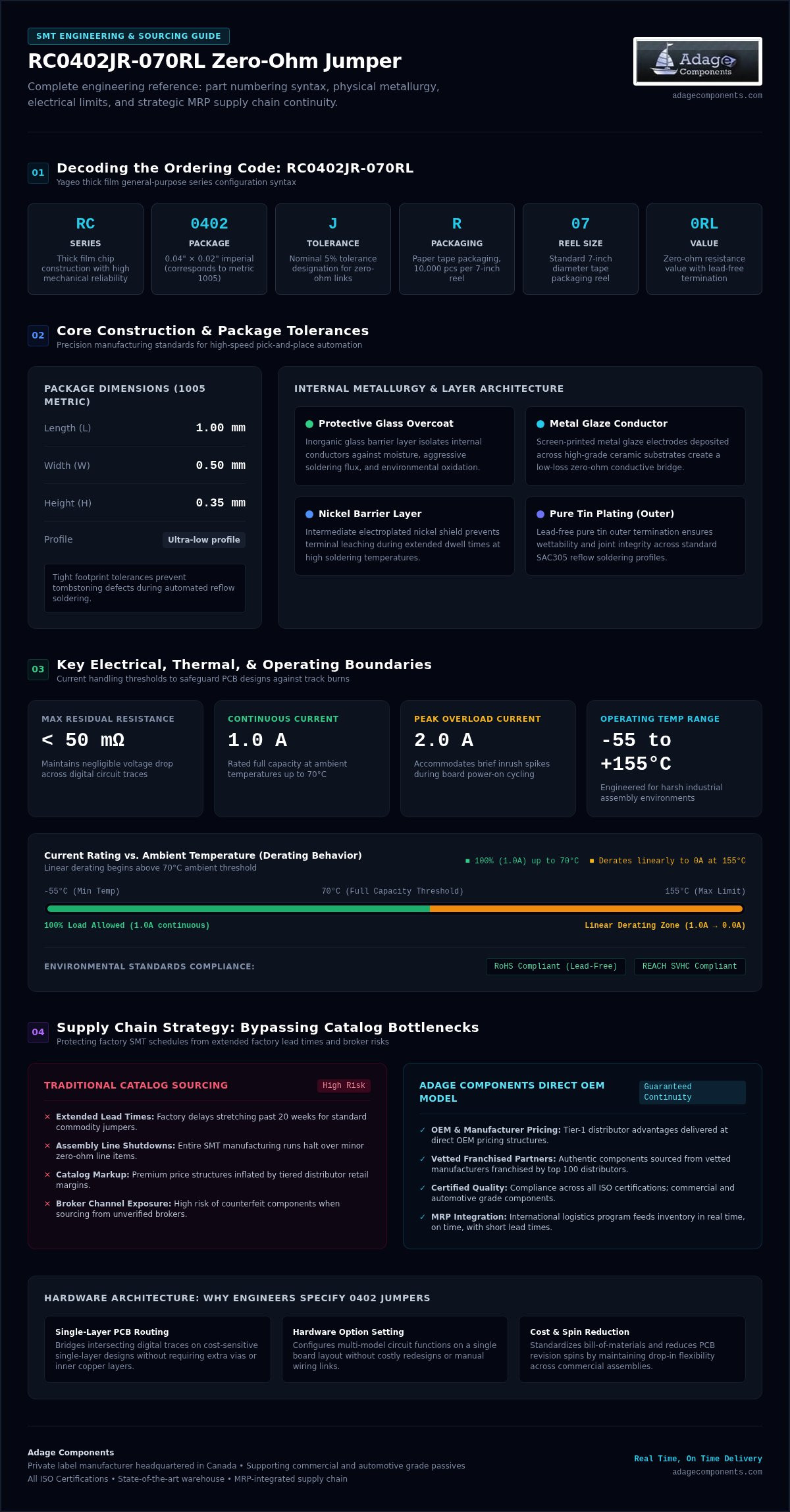

Decoding the Yageo Part Number Syntax

Catalog distributor tables often display raw specifications without explaining the engineering logic embedded in the ordering code. Breaking down the alphanumeric characters of the RC0402JR-070RL reveals its complete manufacturing identity:

• RC: Identifies Yageo's core thick film chip resistor construction technology, featuring high mechanical reliability.
• 0402: Indicates the imperial package footprint (0.04" x 0.02"), which corresponds directly to metric 1005 dimensions.
• J: Represents the nominal 5% tolerance code, which functions as the standard commercial designation for zero-ohm jumper links.
• R: Specifies paper tape packaging on a standard 7-inch reel, typically wound to 10,000 pieces for high-speed automated pick-and-place feeders.
• 07: Denotes the reel size code (7-inch diameter).
• 0RL: Defines the zero-ohm resistance value with standard lead-free termination chemistry.

Core Construction and Physical Dimensions

Form factor precision is vital for defect-free automated assembly. Standard package dimensions measure 1.00mm in length, 0.50mm in width, and an ultra-low profile height of 0.35mm. High-speed placement heads require tight tolerances to prevent tombstoning during reflow. The internal resistive element uses metal glaze layers protected by an inorganic glass overcoat. This protective barrier seals the underlying conductor against industrial moisture, aggressive soldering fluxes, and environmental oxidation.

External terminations feature multi-layer barrier metallurgy. An inner electrode bonds to the ceramic substrate, followed by a nickel barrier layer that prevents terminal leaching during prolonged solder dwell times. The outer layer consists of pure tin plating, ensuring wettability across lead-free SAC305 assembly profiles. For engineering teams evaluating bill-of-materials flexibility, our team at Adage Components provides verified thick film chip resistors manufactured to these identical physical and metallurgical standards, delivering dependable drop-in performance for your SMT production runs.

Key Electrical, Thermal, and Mechanical Characteristics

Understanding operational thresholds prevents catastrophic board failure under sustained loads. Standard thick film resistors are defined by power ratings in fractions of a watt, but zero-ohm jumpers operate differently. Because nominal resistance approaches zero, current capacity dictates thermal limits. The rc0402jr 070rl bridges tracks cleanly while maintaining compliance with RoHS directives and REACH SVHC regulations across global production runs.

Electrical Ratings and Current Handling

Engineers must design within defined current ceilings to avoid trace burning. The standard 0402 package size jumper exhibits these verified baseline ratings:

• Maximum Residual Resistance: Guaranteed below 50 milliohms across operating life, ensuring negligible voltage drops across digital traces.
• Rated Continuous Current: 1.0 Ampere continuous current at ambient operating temperatures up to 70°C.
• Maximum Overload Peak Current: Up to 2.0 Amperes peak current, accommodating brief inrush spikes during power cycling without conductor rupture.

Thermal Limits and Derating Curves

Industrial assemblies generate concentrated heat within enclosed chassis. The operational temperature span of the RC0402JR-070RL ranges continuously from -55°C to +155°C. Full rated current capacity holds steady up to an ambient temperature of 70°C. Beyond this threshold, current limits derate linearly down to zero at 155°C. For harsh environments, review our passive electronic components guide to implement proper thermal derating rules on densely packed PCBs.

Soldering and Assembly Compatibility

High-volume SMT feeders demand tight packaging tolerances. The component ships in punch-type cardboard tape reels that prevent tape jamming in automated pick-and-place feeders. The terminal structure fully supports lead-free infrared reflow, vapor phase, and wave soldering profiles. Classified under Moisture Sensitivity Level 1 (MSL-1), these jumpers require zero dry-pack baking or specialized moisture barrier bags prior to assembly. If your production team needs immediate access to fully qualified passives, consult our comprehensive line card to review drop-in alternatives manufactured to these exact industrial metrics.

Circuit Design Applications: Why Engineers Specify 0402 Jumpers

Hardware layout demands strategic trade-offs between component density and fabrication expenses. Placing an rc0402jr 070rl on a schematic provides functional utility far beyond simply connecting two points on a circuit net. By functioning as zero-resistance bridges, these surface-mount passives allow hardware teams to bypass PCB fabrication bottlenecks, consolidate product bills of materials, and debug complex board subsystems directly on the factory floor.

PCB Trace Routing and Layer Simplification

Adding copper layers increases raw printed circuit board fabrication costs exponentially. When dense routing topologies force traces to cross paths on double-sided boards, inserting a zero-ohm bridge enables one signal to jump directly over another on the same layer. Adhering to standardized 0402 package specifications allows layout designers to drop jumper footprints between adjacent pads without violating high-density design rules. This technique maintains tight layout footprints across compact wearables, mobile sub-assemblies, and IoT nodes while preserving low fabrication overhead.

Hardware Configuration and Optional Circuit Tuning

Managing inventory across multiple product variants introduces severe supply chain friction. Rather than ordering and stocking separate circuit boards for standard, premium, or regional product models, hardware architects use zero-ohm jumpers to build a single, unified PCB baseline. SMT lines selectively load jumpers during automated pick-and-place assembly to achieve several configuration goals:

• Hardware Option Selection: Jumpers pull designated micro-controller pins to ground or supply rails, establishing hardware options without requiring separate firmware builds.
• Circuit Subsystem Isolation: Leaving specific jumper footprints unpopulated physically isolates high-power RF or sensor sections during initial board power-up and firmware debugging.
• Current Measurement Windows: Removing a jumper during development creates an immediate test point for inserting series ammeters to measure deep-sleep currents in battery-powered devices.
• BOM Consolidation: A single reel of the RC0402JR-070RL serves multiple design functions across your entire active assembly line, cutting procurement overhead.

Integrating these devices cleanly preserves board real estate while maintaining assembly flexibility across automated production runs.

Supply Chain Bottlenecks: Managing Shortages and Extended Lead Times

Thick film chip resistors represent 43% of the global resistor market, making them the primary workhorses of modern surface-mount electronics. Yet commodity passives frequently face severe allocation cycles worldwide. In early 2026, major manufacturers announced price increases of 8% to 20% on thick film resistors, driven by surging demand from automotive, AI hardware, and green energy sectors. When parts like the rc0402jr 070rl run into factory backorders reaching 20 to 26 weeks, unscheduled downtime drains capital fast. For broader procurement intelligence on market structures, consult our electronic component distributors guide.

The Problem with Single-Sourcing Commodity Passives

Engineering teams often focus their multi-sourcing efforts on expensive active silicon, leaving simple zero-ohm jumpers tied to a single manufacturer part number. This practice creates severe operational exposure:

• Catalog Price Markups: Tier-1 catalog distributors routinely charge heavy premiums for cut-tape quantities and low-volume reel purchases, eating into manufacturing margins.
• Lead Time Vulnerability: When tier-1 catalog inventory reaches zero, backorders force factory delivery schedules to slip by months.
• Inflated Minimum Order Quantities: Sudden increases in distributor MOQs force procurement managers to purchase full 10,000-piece reels, tying up operational cash flow in non-fungible inventory.

Counterfeit Risks in Secondary Component Markets

Extended allocation cycles push frustrated buyers toward unauthorized brokers and secondary open-market channels. Sourcing passives through unvetted suppliers introduces severe manufacturing risks. Relabeled reels, oxidized lead terminations, and out-of-spec ceramic substrates cause inconsistent solder wetting, excessive voiding, and intermittent board failures. In mission-critical environments, a single substandard jumper compromises an entire assembly. Securing true production resilience requires purchasing authentic components directly through vetted manufacturers and partner suppliers franchised by top 100 global distributors.

We solve these inventory bottlenecks by holding buffer stock aligned directly with factory manufacturing schedules. Rather than waiting on months-long factory backorders, protect your production lines by reviewing our complete line card of thick film chip resistors to establish a secure supply chain with short leading times today.

Strategic Alternatives: Qualifying Drop-in Replacements at OEM Pricing

Thick film chip resistors are built to universal mechanical and electrical standards, making them ideal candidates for dual-sourcing programs. When allocation cycles disrupt factory allocations for standard components like the rc0402jr 070rl, qualified cross-references keep your assembly operations running. As a private label manufacturer headquartered in Canada, Adage Components delivers one of the best costs in the industry. We give OEMs and electronics manufacturing services (EMS) providers the exact same advantages as buying from tier 1 distributors but at OEM pricing.

The 4-Step Technical Qualification Framework

Qualifying second-source thick film chip resistors requires a disciplined engineering review to ensure absolute process compatibility. Follow this systematic validation path:

• Footprint Verification: Match package geometry, land pattern pad dimensions, and 8mm tape-and-reel pocket specifications to prevent feeder mispicks.
• Electrical Parity: Confirm baseline residual resistance stays below 50 milliohms and verified current limits meet or exceed 1A continuous and 2A peak ratings.
• Regulatory Compliance: Validate full compliance with all ISO certifications alongside RoHS and REACH directives for both commercial and automotive grade components.
• Feeder Run Tests: Perform high-speed SMT pick-and-place trial runs using pilot reels to confirm zero tape jams, flawless vacuum pickup, and complete solder joint wetting.

Adage Components: Your Strategic Supply Chain Partner

Eliminating broker risks and catalog markups begins with factory-direct sourcing. We operate as an integrated bridge between vetted manufacturers and your production line. Our partner suppliers, many of whom are franchised by top 100 distributors, supply authentic components subjected to multi-stage quality audits. This rigorous quality framework guarantees complete trace parity without open-market counterfeit risks.

Procurement efficiency hinges on reliable execution. Our growing state-of-the-art warehouse facility maintains dedicated buffer stock, delivering short leading times that are perfect for your MRP system. Backed by our amazing international logistic program, factory orders arrive at your facility in real time, on time. Stop paying tier-1 markups for everyday passives. Explore our complete selection of thick film chip resistors on our product linecard, or upload your part requirements directly via our BOM submission form to get manufacturer pricing and cut assembly costs across your next production run.

Secure Your 0402 Jumper Pipeline and Protect Assembly Margins

A simple commodity component shouldn't compromise your delivery schedule or erode assembly profits. Mastering the technical parameters of the rc0402jr 070rl demonstrates that electrical parity and mechanical footprints remain globally standardized across qualified chip resistors. Moving beyond catalog distributor allocations toward direct private label manufacturing eliminates unnecessary middleman markups while keeping your factory running smoothly.

At Adage Components, we protect your assembly lines through partnerships with vetted manufacturers franchised by top 100 distributors. Every reel delivers full compliance with international ISO quality standards for commercial and automotive grade applications. Supported by our growing state-of-the-art warehouse and rapid international logistics, we supply authentic passives tailored for your MRP system in real time, on time. Take control of your procurement pipeline today. Review our line card of thick film chip resistors to lock in manufacturer pricing and build true operational resilience into your supply chain.

Frequently Asked Questions

Is the RC0402JR-070RL resistor identical to a standard copper zero-ohm trace?

No, it isn't electrically identical because thick film jumpers maintain a measurable residual resistance. The rc0402jr 070rl guarantees residual resistance below 50 milliohms, whereas a solid copper trace offers micro-ohm impedance. In standard digital routing and hardware configuration nets, this tiny difference is negligible. However, for sensitive high-speed RF paths or high-current power distribution lines, engineers must account for minor insertion losses and thermal dissipation.

What is the maximum current rating for an 0402 zero-ohm jumper resistor?

Standard 0402 jumpers carry a continuous rated current of 1.0 Ampere at temperatures up to 70°C, with a maximum overload peak current of 2.0 Amperes. Exceeding these current ratings generates excessive localized heating that can fracture the internal metal glaze or damage adjacent circuit traces. If your circuit board design demands continuous current loads above 1A, consider paralleling multiple footprints or stepping up to an 0603 package.

Can I substitute an 0402 zero-ohm jumper with alternative brand thick film resistors?

Yes, thick film chip resistors are built to standardized international dimensions and electrical specifications. As long as the replacement shares the 0402 footprint (1.0mm x 0.5mm), guarantees residual resistance under 50 milliohms, and meets the 1A current ceiling, it operates as a true drop-in replacement. We offer fully compatible commercial and automotive grade components that load directly into your automated assembly programs without modifying PCB footprints.

How does Adage Components ensure the quality of alternative chip resistors?

We enforce rigorous multi-stage quality audits and source exclusively through vetted manufacturers and partner suppliers franchised by top 100 distributors. Every production lot complies with international ISO certifications to guarantee mechanical and electrical integrity. Our incoming inspection protocols verify terminal solderability, packaging tape tolerances, and electrical limits in our growing state-of-the-art warehouse, providing authentic components that safeguard your manufacturing runs from counterfeit risks.

What factory packaging is standard for RC0402JR-070RL chip resistors?

The standard factory packaging for the RC0402JR-070RL is 8mm paper carrier tape wound on a 7-inch reel containing 10,000 components. This standardized format matches high-speed surface-mount pick-and-place feeders perfectly. The punch-hole paper tape protects the nickel barrier terminations from mechanical abrasion, while anti-static cover tape prevents electrostatic discharge and feeder jamming during continuous, automated manufacturing runs.

Why do production engineers use zero-ohm resistors instead of direct PCB bridges?

Production engineers specify zero-ohm resistors because they feed cleanly through automated SMT equipment, eliminating the high labor costs and defect rates of manual wire soldering. Surface-mount jumpers allow single-layer and double-sided boards to bridge overlapping traces without adding costly internal copper layers. They also provide convenient physical disconnection points for circuit debugging, low-power current measurement, and configuring multiple hardware options on a single PCB layout.

How do buffer stocking agreements prevent production line stoppages?

Buffer stocking agreements protect your assembly schedule by maintaining reserved component inventory in dedicated warehouse facilities, insulated from unexpected allocation cycles and factory lead times. Instead of waiting months on catalog distributor backorders, our programs connect directly with your MRP system. We manage inventory through our amazing international logistic program, ensuring that fully verified passive components arrive at your facility in real time, on time.
