RC0402FR-071KL Resistor: Key Specs and Sourcing Guide

The smallest passive on your bill of materials often causes the largest margin leak. When high-volume surface-mount production relies on standard thick film resistors like the rc0402fr 071kl, catalog distributor markups quietly erode profitability. You already know the operational headache of sudden factory allocations and lead time blowouts for standard passives, which frequently leave purchasing teams stuck between line shutdowns and inflated distributor pricing.

Qualifying reliable cross-referenced parts shouldn't introduce engineering uncertainty or compromise production quality. In this guide, you'll verify the exact electrical, thermal, and footprint specifications of the RC0402FR-071KL, ensuring absolute design compatibility across commercial and automotive grade applications. We promise to show you how to bypass distribution bottlenecks and secure drop-in replacements that deliver the same advantages as buying from tier 1 distributors but at OEM pricing. Ahead, we break down core parametric requirements, compliance standards, and supply chain strategies built to feed authentic components into your MRP system in real time, on time.

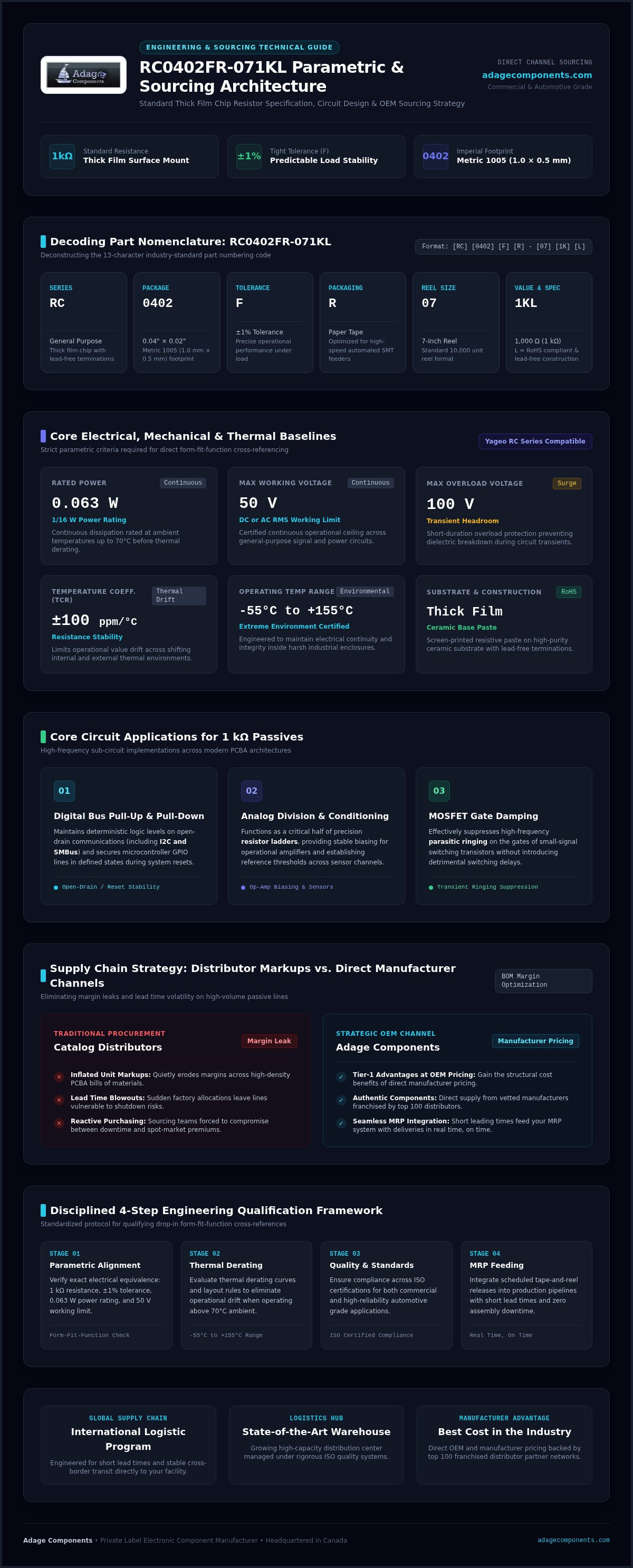

Decoding RC0402FR-071KL: Complete Technical Specifications and Part Nomenclature

The RC0402FR-071KL is an industry-standard 1 kΩ (kilo-ohm) thick film surface-mount device (SMD) chip resistor manufactured by Yageo. Built using mature thick film technology that screen-prints resistive pastes onto a ceramic substrate, it serves as a reliable workhorse across both high-density consumer electronics and industrial motherboards. Standard passives of this class dominate printed circuit board assemblies (PCBAs) because they balance precise operational tolerances with low production overhead. However, mistaking a single character in the manufacturer part number (MPN) during procurement can bring automated surface-mount placement lines to an abrupt halt.

Breaking Down the Yageo RC Series Part Numbering Code

Deconstructing the 13-character MPN reveals vital ordering, electrical, and packaging variables:

• RC: Designates the Yageo product series for general-purpose thick film chip resistors with lead-free terminations.
• 0402: Indicates the imperial package dimensions of 0.04 inches by 0.02 inches, corresponding to metric 1005 (1.0 mm × 0.5 mm).
• F: Defines a tight resistance tolerance of ±1%, ensuring predictable circuit performance under typical operating loads.
• R: Specifies standard paper tape packaging on reels, optimized for high-speed automated pick-and-place feeders.
• 07: Identifies the standard 7-inch reel format (typically containing 10,000 units) and the standard power rating tier.
• 1KL: Denotes the resistance value and material compliance; "1K" signifies 1,000 Ω, while "L" marks standard lead-free, RoHS-compliant termination construction.

Core Electrical, Mechanical, and Environmental Ratings

Procurement teams and component engineers evaluating the rc0402fr 071kl must confirm strict parametric alignment across electrical and thermal baselines before approving drop-in hardware:

• Rated Power: 0.063 W (1/16 W) continuous dissipation at ambient temperatures up to 70°C.
• Maximum Working Voltage: 50 V direct current (DC) or alternating current (AC) root-mean-square (RMS).
• Maximum Overload Voltage: 100 V, providing short-duration transient headroom.
• Temperature Coefficient of Resistance (TCR): Rated within ±100 ppm/°C, limiting resistance drift across changing thermal environments.
• Operating Temperature Range: Certified from -55°C to +155°C, accommodating harsh industrial enclosures.

Mastering these specific parameters protects high-volume production runs. Ensuring that your bill of materials specifies authentic components that match these mechanical footprint dimensions and electrical limits prevents high-cost reworks and manufacturing downtime.

Circuit Applications, Layout Constraints, and Thermal Performance

High-density board layouts demand precise circuit analysis and physical design margins. Deploying the rc0402fr 071kl requires balancing its functional role against the operational limits of a miniature 1005 footprint. Because this 1 kΩ device handles diverse switching and bias duties, designers must consider board-level heat dissipation and pick-and-place assembly dynamics early in layout planning.

Typical Subsystem Applications Across Modern Electronics

The 1 kΩ resistance tier serves critical roles in high-speed digital architectures and analog signal processing chains:

• Digital Bus Pull-Up and Pull-Down: Maintains deterministic logic levels on open-drain lines (such as I2C and SMBus) and holds microcontroller GPIOs in stable states during reset cycles.
• Analog Division and Signal Conditioning: Forms half of precision resistor ladders, biasing operational amplifiers and setting reference thresholds in sensor monitoring channels.
• MOSFET Gate Damping: Suppresses high-frequency parasitic ringing on the gates of small-signal switching transistors without causing significant switching delays.

Assembly Reliability and PCB Footprint Optimization

Surface-mount assembly risks climb as footprints shrink. The standard 0402 imperial package features a nominal footprint of 1.0 mm by 0.5 mm, making it susceptible to component skewing and tombstoning during reflow if thermal distribution is unbalanced. Designing land patterns compliant with IPC-7351 and following guidelines like the NASA Workmanship Standard for Surface Mount Technology ensures mechanical joint stability and robust wetting fillets under volume production.

Solder paste stencil apertures should match pad geometries tightly with 1:1 area ratios, avoiding uneven solder volume. Standard lead-free SAC305 reflow profiles require a ramp-up rate under 3°C per second and a peak reflow window between 240°C and 260°C. From a handling standpoint, these thick film resistors conform to Moisture Sensitivity Level (MSL) 1, eliminating dry-pack baking requirements before surface-mount placement. Electrostatic discharge (ESD) handling protocols remain straightforward, but automated nozzle pick coordinates must center precisely over the ceramic body to eliminate post-reflow rotation.

Thermal management also dictates reliable long-term operation. While rated for 0.063 W up to 70°C, the component's continuous power capability derates linearly from 70°C down to zero at 155°C. When operating standard passives inside densely packed enclosures, verifying thermal baselines keeps resistors well clear of thermal runaway. If your team is evaluating cross-references across commercial and automotive grade components, review our thick film chip resistor line card to verify drop-in footprints and thermal derating margins across alternate passive options.

The True Cost of Sourcing: Catalog Distributors vs. Strategic OEM Channels

Catalog distributors excel at rapid prototyping, but leaning on them for scaled manufacturing erodes production margins. When an electronics manufacturing services (EMS) provider or original equipment manufacturer (OEM) sources commodity passives like the rc0402fr 071kl via catalog lines, they absorb significant overhead markups. Across hundreds of thousands of surface-mount placements, these small price deltas compound into serious bill-of-materials inflation.

Catalog Price Markups and Their Impact on Production Budgets

Procuring standard passives through catalog aggregators carries hidden penalties that extend well past baseline piece rates. High handling charges, reel repackaging fees, and fragmented shipping costs drive up land-in totals. For high-density printed circuit boards containing dozens of 1 kΩ pull-up and filtering positions, excessive component margins directly suppress assembly profits. To understand how strategic sourcing transforms these cost structures, consult the strategic guide to sourcing passive electronic components for OEMs.

Mitigating Lead Time Shocks and Factory Allocation Risks

Relying on standard distribution channels creates dangerous production vulnerabilities when factory allocations tighten. Historical market disruptions show how quickly standard lead times can blowout from weeks to months, leaving procurement managers scrambling on spot markets to prevent idle surface-mount lines. Single-sourcing a commercial-grade resistor exposes your production schedule to volatile distributor inventory swings and unannounced factory delays.

Strategic stocking programs eliminate this operational exposure. Establishing direct manufacturing pipelines pairs dependable factory allocations with localized buffer inventory, ensuring standard reels move into production without interruption.

Partnering with a private-label manufacturer provides the same advantages as buying from tier 1 distributors but at OEM pricing. We configure buffer reserves to guarantee that authentic components reach your facility in real time, on time, fully safeguarding manufacturing margins against catalog volatility.

Qualify RC0402FR-071KL Drop-In Replacements in Production

Engineering teams often hesitate to approve second sources for passives because improper substitutions risk line stoppages or field failures. Mitigating this risk requires a disciplined qualification framework that validates form-fit-function equivalency before updating approved vendor lists (AVL). When replacing the rc0402fr 071kl, procurement and quality engineers can execute a streamlined 4-step framework: parametric verification, supplier auditing, environmental validation, and trial SMT placement.

Form, Fit, and Function Verification Checklist

Confirming direct mechanical and electrical alignment prevents downstream assembly defects:

• Mechanical Dimensions: Verify precise 0402 imperial (1005 metric) land pattern compatibility, terminal metallization, and standard 8mm punched paper tape pitch to ensure zero feeder re-indexing.
• Parametric Alignment: Match the 1/16W continuous power dissipation, 50V working voltage ceiling, and tight ±1% tolerance across identical resistance values.
• Thermal Stability: Validate that the component matches the ±100 ppm/°C TCR limit and maintains full rated power through 70°C without premature derating.
• Regulatory Paperwork: Secure complete material declarations verifying compliance with RoHS thresholds, REACH SVHC standards, and conflict mineral regulations.

Supplier Vetting, Auditing, and Component Authenticity

Protecting your manufacturing floor demands sourcing authentic components exclusively from vetted manufacturers and established partner suppliers. Many of these manufacturing partners are franchised by top 100 distributors, establishing unbroken chain-of-custody documentation from factory floor to incoming dock. Suppliers must maintain rigorous compliance with ISO certifications, including ISO 9001 for general manufacturing and IATF 16949 for automotive-level production. This dual-track support ensures reliable quality across both commercial and automotive grade components.

Streamlining Engineering Change Orders (ECO) and MRP Integration

Approving secondary passive sources shouldn't stall your engineering department. By establishing pre-cleared parametric equivalency templates, teams can fast-track Engineering Change Orders (ECO) without redesigning board layouts. Standardized reel barcoding and packaging allow production lines to feed alternative reels straight into automated pick-and-place equipment.

This automated compatibility makes drop-in passives perfect for your MRP system. We align component specifications and lead-time schedules directly with your production enterprise planning tools, delivering short leading windows that keep SMT lines moving. Ready to reduce component expenditure across active manufacturing assemblies? Use our online BOM submission form to initiate a direct cross-referencing review. You can also explore our thick film resistor line card to verify approved drop-in options that deliver manufacturer pricing for your next production run.

Sourcing High-Reliability Thick Film Resistors with Adage Components

Adage Components operates as a strategic private label manufacturer and supply partner, headquartered in Canada, delivering one of the best costs in the industry. Instead of absorbing standard distributor premiums for high-volume passives like the rc0402fr 071kl, original equipment manufacturers and EMS facilities leverage our direct infrastructure to get manufacturer pricing. We eliminate non-value-added intermediary layers while providing the same advantages as buying from tier 1 distributors but at OEM pricing.

Direct Sourcing Infrastructure and Quality Assurance

Procurement teams secure authentic components manufactured to uncompromising engineering baselines. We source directly from vetted manufacturers and certified partner suppliers, many of which are franchised by top 100 distributors. This structure guarantees traceable material origin and full compliance with all ISO certifications, covering both ISO 9001 and automotive-grade standards like IATF 16949.

Every reel entering production carries rigorous factory test reporting, supporting both commercial and automotive grade components with full parametric compliance. Whether your manufacturing bill of materials specifies general-purpose thick film resistors or AEC-Q200 verified alternatives, our catalog provides fully validated drop-in options. Review the broad component portfolio featured on the Adage line card to align secondary sources across your active board designs.

Global Logistics Programs and Managed Buffer Stock

Line stops often stem from logistics failures rather than fabrication delays. To eliminate stock-out hazards, we manage dedicated inventory reserves inside our growing state-of-the-art warehouse facility. This regionalized stock absorption shields your production schedule from unexpected allocation cycles, raw material price shifts, and sudden factory lead-time extensions.

Our operation synchronizes seamlessly with your factory floor. Through short leading fulfillment models, our dispatch schedules are perfect for your MRP system, pulling demand triggers directly from your material requirements framework. Supported by an amazing international logistic program, passive reels dispatch rapidly and clear customs cleanly, arriving at your facility in real time, on time. When your operations require secure passive pipelines without inflated piece rates, contact our engineering support team to review current manufacturing pricing and schedule immediate trial lots.

Protect Margins and Secure Production with Strategic Sourcing

High-density PCB production requires zero tolerance for line downtime or inflated passive costs. Specifying exact electrical and mechanical baselines for the rc0402fr 071kl ensures seamless drop-in substitution across high-volume surface-mount assemblies. When your manufacturing operations shift from catalog markups to strategic OEM channels, commodity passives become an engine for profitability rather than a budget drain.

Adage Components bridges the gap between global factory fabrication and your assembly floor. By combining manufacturer pricing on high-volume thick film chip resistors with ISO-certified quality assurance, we deliver authentic components from an elite vetted manufacturer network. Dedicated stocking programs housed in our growing state-of-the-art warehouse ensure your MRP system receives continuous replenishment without lead-time disruptions. To protect your production margins and secure supply continuity, explore our passive component line card to qualify approved drop-in inventory today. Take control of your BOM economics and keep your surface-mount lines running at peak performance.

Frequently Asked Questions

What does the part number RC0402FR-071KL stand for?

The part number designates a Yageo general-purpose thick film surface-mount chip resistor. In this sequence, "RC" indicates the thick film product family, "0402" defines the 0.04-inch by 0.02-inch footprint (metric 1005), and "F" denotes a ±1% tolerance. The "R" signifies paper carrier taping, "07" marks standard power dissipation on a 7-inch reel, and "1KL" denotes a 1,000-ohm value with lead-free, RoHS-compliant terminal construction.

Can an alternative 0402 1kΩ thick film resistor serve as a drop-in replacement for RC0402FR-071KL?

Yes, alternative passives serve as direct drop-in replacements provided they align precisely with the form-fit-function parameters of the rc0402fr 071kl. The cross-referenced part must share identical 1.0 mm by 0.5 mm physical dimensions, a 0.063 W power rating, a 50 V working voltage limit, a ±1% tolerance, and a TCR within ±100 ppm/°C. Matching tape-and-reel packaging specifications guarantees pick-and-place feeders require no reprogramming.

What is the maximum operating voltage and power rating of RC0402FR-071KL?

The component features a continuous maximum working voltage of 50 V (DC or AC RMS) and an overload protection ceiling of 100 V. Its continuous power dissipation is rated at 0.063 W (1/16 W) at ambient temperatures up to 70°C. If your board environment runs above 70°C, the device derates linearly, reaching zero continuous power capacity at its maximum temperature boundary of 155°C.

What is the difference between commercial grade and automotive grade 0402 chip resistors?

Commercial-grade resistors operate reliably under standard environmental stress, whereas automotive-grade variants undergo extended reliability qualification compliant with AEC-Q200 standards. Automotive components, such as Yageo's AC series, require strict wafer-level process controls, enhanced resistance to sulfurization, and production certified under IATF 16949 standards. They withstand higher thermal cycling, extreme mechanical vibration, and severe operating humidity encountered in under-the-hood engine compartments.

Why do volume electronics manufacturers avoid purchasing passive components through catalog distributors?

Catalog distributors build pricing around small prototype quantities and rapid dispatch, adding heavy transactional markups to standard reels. For scaled production, these inflated unit costs accumulate rapidly across high-density bills of materials. Sourcing through strategic private-label manufacturers allows volume operations to secure direct OEM pricing, establish dedicated buffer inventories, and avoid the factory allocation spikes typical of shared distributor shelves.

How do private label manufacturers like Adage Components ensure component authenticity and quality?

Adage Components procures authentic components directly through audited, vetted manufacturers and established partner suppliers, many franchised by top 100 distributors. Every production lot undergoes rigorous multi-stage factory verification to ensure strict compliance with ISO certifications, including ISO 9001 and IATF 16949. Centralized handling in our state-of-the-art warehouse maintains an unbroken chain of custody for both commercial and automotive grade components.

What documentation is required to qualify an alternative thick film resistor on an OEM bill of materials?

Qualifying a drop-in replacement requires engineering datasheets verifying physical dimensions, soldering land patterns, and electrical performance derating. Quality departments require certificates of compliance (CoC) and environmental documentation, such as EU RoHS, REACH SVHC declarations, and conflict minerals reporting templates (CMRT). For automotive builds, qualification additionally demands Production Part Approval Process (PPAP) Level 3 documentation, including design failure mode effects analysis (DFMEA) and AEC-Q200 test reports.
